Same model may have multiple batches, images only for reference.

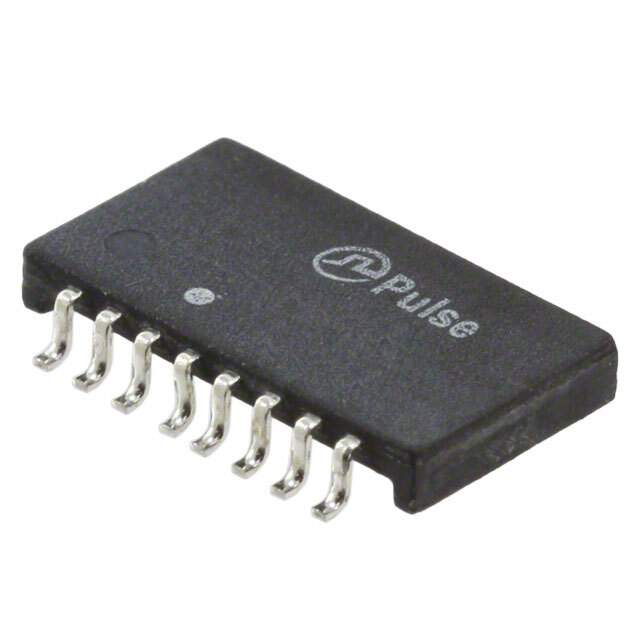

HX2326NL Real Image
Same model may have multiple batches, images only for reference.

HX2326NL

Part No HX2326NL
Manufacturer Pulse
Catalog Pulse Transformers
Description SGL.10/100.PoE+,SM,OH,TU | MODULE 10/100B-T POE SMD
Datasheet
HX2326NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Style SMD
Parts Dimension 0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Maximum) 0.245" (6.22mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.04 oz (1.14g)
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Win Source Part Number 1182657-HX2326NL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HX2326NL CAD Model

Description

The Pulse Electronics Network HX2326NL is an isolation and data interface encapsulated transformer.

  • Height: 0.245" (6.22mm)
  • Weight: 0.04 oz (1.14g)
  • Temperature Range: -40°C ~ 85°C
  • Mounting: SMD
  • Package: Tube
  • Manufacturer Pack Quantity: 40
  • MSL Level: 1 (unlimited)
  • Parts Dimension: 0.500" L x 0.280" W (12.70mm x 7.11mm)
  • Supply and Demand Status: Limited
