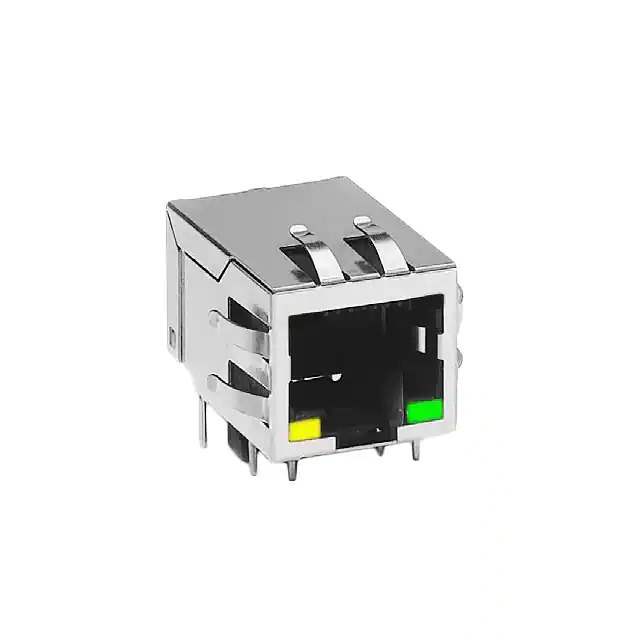

Part No JX0011D21BNL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB
Datasheet
JX0011D21BNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Pulse
Series PULSEJACK™ JX0
Package Tube
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Brass
Housing Material Thermoplastic
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 876252-JX0011D21BNL
Ultra Librarian 3D Model Ultra Librarian JX0011D21BNL CAD Model

Description

The 876252-JX0011D21BNL is a PULSEJACK™ JX0 series modular connector jack with magnetics.

  • Features: Board Guide
  • Orientation: 90° (Right Angle)
  • Application: 10/100 Base-TX and AutoMDIX
  • Row: Single
  • Ports: 1
  • Cores per Jack: 4
  • Shielding: EMI Finger
  • Shield Material: Brass
  • Contact Material: Phosphor Bronze
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Housing Material: Thermoplastic
  • Mounting Type: Through Hole
  • Height Above Board: 0.545" (13.84mm)
  • Operating Temperature: -40°C to 85°C
  • LED Color: Green-Yellow
  • Package: Tube
  • Standard Package: 25 pieces
  • Manufacturer: Pulse
  • Status: Active
