Same model may have multiple batches, images only for reference.

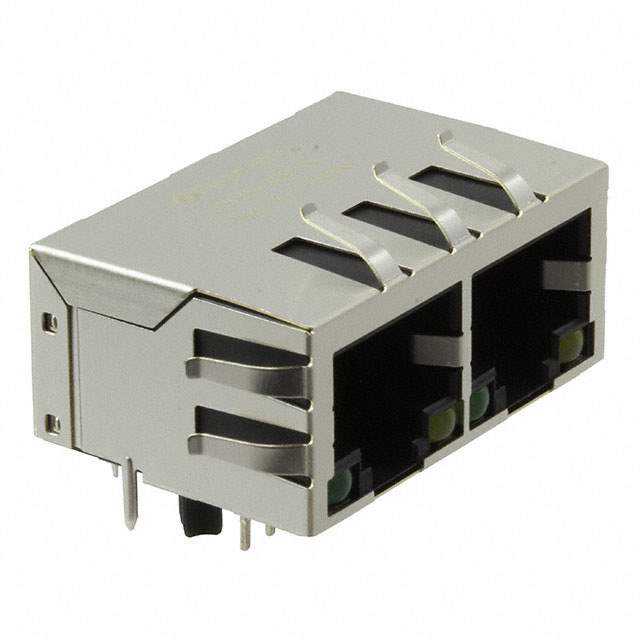

JXD0-2019NL Real Image
Same model may have multiple batches, images only for reference.

JXD0-2019NL

Part No JXD0-2019NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 2PORT 1000 BASE-T PCB / 2 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
JXD0-2019NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Pulse Electronics
Series PULSEJACK™ JXD0
Package Tray
Connector Type RJ45
Number of Ports 2
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.541" (13.75mm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337724-JXD0-2019NL
Ultra Librarian 3D Model Ultra Librarian JXD0-2019NL CAD Model

Description

This is a modular connector jack with magnetics that is designed for use in electronic circuits. The manufacturer is Pulse Electronics.

  • Series: PULSEJACK™ JXD0
  • Feature: Board guide
  • Connector Type: RJ45
  • Row: One
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Tray
  • Contact Material: Phosphor bronze
  • Height Above Board: 0.541" (13.75mm)
  • Shielded: Yes
  • Housing Material: Thermoplastic
  • Applications: 10/100/1000 Base-T, AutoMDIX
  • Orientation: 90° angle (right)
  • Ports: Two
  • Standard Package: 50
  • LED Color: Green-yellow
  • Number of Cores Per Jack: 8
  • Tab Direction: Down
  • Shield Material: Brass
  • Mounting Type: Through hole
  • Temperature Range When Operating: -40°C ~ 85°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.69.4040
