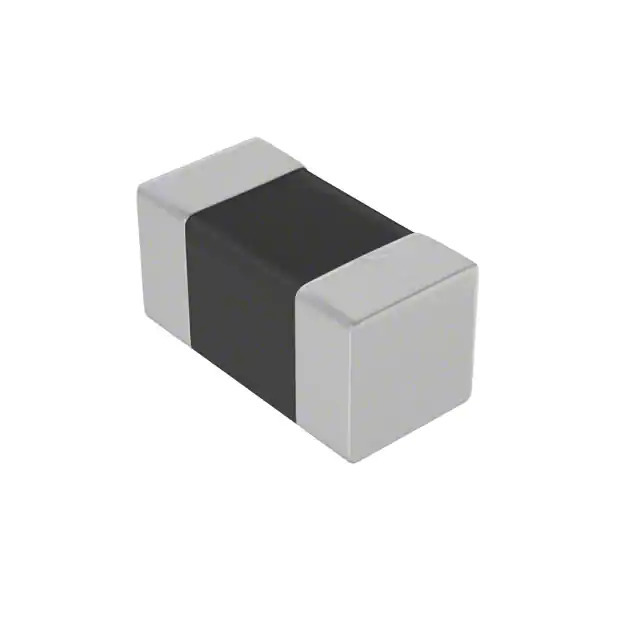

LPF1005LL50R2400A Pulse
Same model may have multiple batches, images only for reference.

LPF1005LL50R2400A

Part No LPF1005LL50R2400A
Manufacturer Pulse
Catalog RF Filters
Description FILTER LOW PASS SMD 2.4G
Datasheet
LPF1005LL50R2400A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr Pulse Electronics
Series 1005
Package Tape & Reel
Product Status Active
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Low Pass
Ripple -
Insertion Loss 0.5dB
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric), 4 PC Pad
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) 0.018" (0.45mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1373352-LPF1005LL50R2400A
Ultra Librarian 3D Model Ultra Librarian LPF1005LL50R2400A CAD Model

Description

The 1373352-LPF1005LL50R2400A is an RF low pass filter from Pulse Electronics.

  • Mounting Type: Surface Mount
  • Package Size: 0402 (1005 Metric), 4 PC Pad
  • Center Frequency: 2.45GHz
  • Insertion Loss: 0.5dB
  • Operating Temperature: -55°C ~ 125°C
  • REACH: Unaffected
  • Height - Seated (Max): 0.018" (0.45mm)
