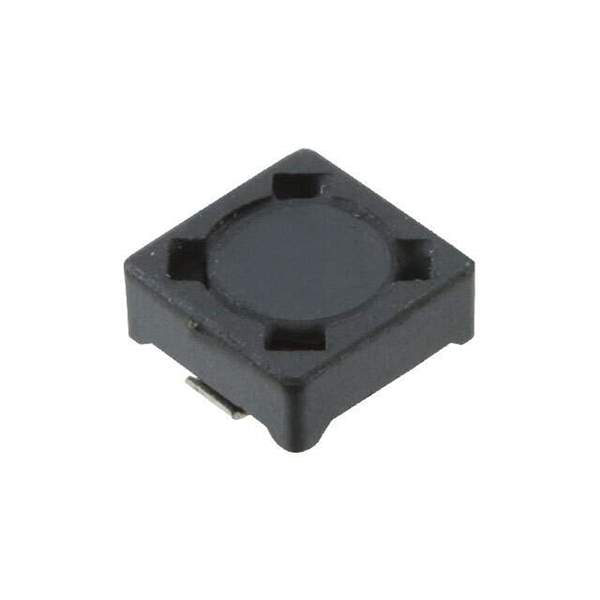

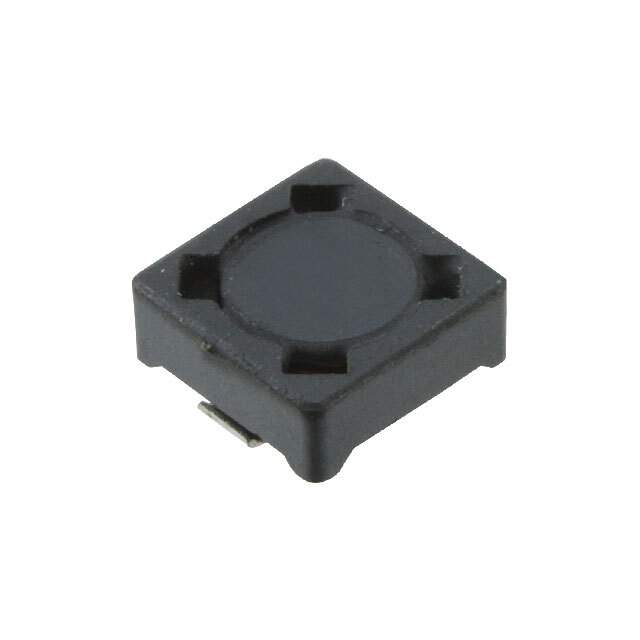

P1166.224NLT

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	P1166.224NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 220UH 350MA 1.48OHM SM / 220 µH Shielded Wirewound Inductor 350 mA 1.48Ohm Max Nonstandard
Datasheet	P1166.224NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	P1166NL
Package	Tape & Reel (TR)
Type	Wirewound
Inductance	220 µH
Tolerance	±20%
Current Rating (Amps)	350 mA
Current - Saturation (Isat)	370mA
Shielding	Shielded
DC Resistance (DCR)	1.48Ohm Max
Frequency - Self Resonant	5.1MHz
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.297" L x 0.297" W (7.54mm x 7.54mm)
Height - Seated (Max)	0.138" (3.51mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	1,200
Win Source Part Number	1204934-P1166.224NLT
Ultra Librarian 3D Model	Ultra Librarian P1166.224NLT CAD Model

Alternative Products

Description

The P1166NL series wirewound inductors from Pulse Electronics Power are designed for use in a variety of applications.

Inductance: 220 μH
Tolerance: ±20%
DC Resistance: 1.48 Ohm max
Current Rating: 350 mA
Saturation Current: 370mA
Frequency Range: 100 kHz
Self-Resonant Frequency: 5.1 MHz
Operating Temperature Range: -40°C to 130°C
Package/Case: Non-standard
Packaging: Tape and reel
