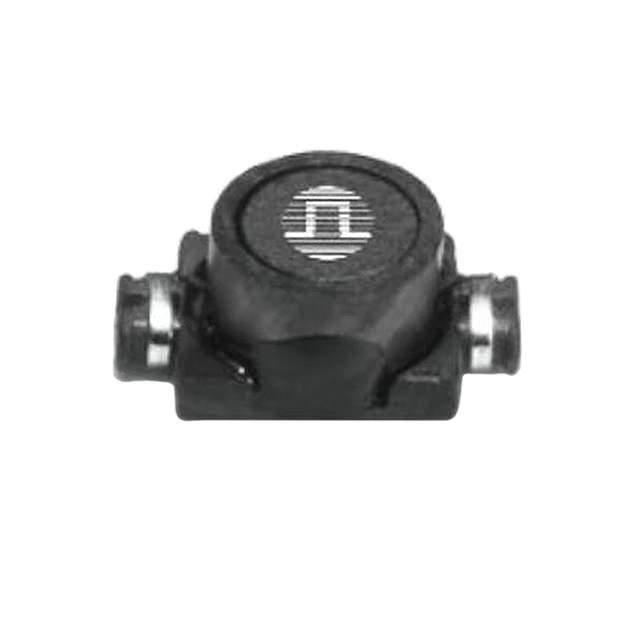

Same model may have multiple batches, images only for reference.

P1174.472NLT

Name: P1174.472NLT
Brand: Pulse
SKU: 994569
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P1174.472NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 1A 30 MOHM SMD / 4.7 µH Shielded Wirewound Inductor 1 A 30mOhm Max Nonstandard
Datasheet	P1174.472NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	P1174NL
Package	Tape & Reel (TR)
Type	Wirewound
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	1 A
Current - Saturation (Isat)	1A
Shielding	Shielded
DC Resistance (DCR)	30mOhm Max
Frequency - Self Resonant	40MHz
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.265" L x 0.175" W (6.73mm x 4.45mm)
Height - Seated (Max)	0.110" (2.79mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	2,500
Win Source Part Number	994569-P1174.472NLT
Ultra Librarian 3D Model	Ultra Librarian P1174.472NLT CAD Model

Alternative Products

Description

The Pulse Electronics Power 994569-P1174.472NLT is a P1174NL series fixed inductor that belongs to the category of inductors, coils, chokes.

Application: Wirewound
Package: Tape and Reel (TR)
Shielding: Shielded
Standard Package: 2,500
Mounting: SMD (SMT)
Tolerance: ±20%
Inductance: 4.7 μH
Seated Height: 0.110" (2.79mm)
Self-Resonance Frequency: 40MHz
DC Resistance (DCR): 30mOhm Max
Operating Temperature: -40°C ~ 130°C
Dimension: 0.265" L x 0.175" W (6.73mm x 4.45mm)
Current Rating: 1 A
Inductance Frequency: 100 kHz (testing)
Manufacturer: Pulse Electronics Power
Current Saturation: 1A
