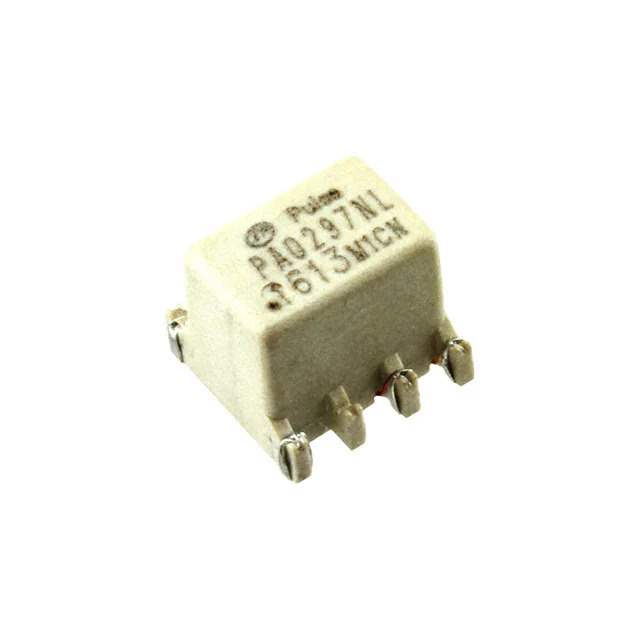

PA0297NL Real Image
Same model may have multiple batches, images only for reference.

PA0297NL

Part No PA0297NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 2:1:1 1200UH / 1200μH Pulse Transformer 2:1:1 Surface Mount
Datasheet
PA0297NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Inductance 1200µH
ET (Volt-Time) 27.2VµS
Mounting Type Surface Mount
Size / Dimension 0.354" L x 0.339" W (9.00mm x 8.60mm)
Height - Seated (Max) 0.299" (7.60mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 929929-PA0297NL
Ultra Librarian 3D Model Ultra Librarian PA0297NL CAD Model

Description

The 929929-PA0297NL is a pulse transformer from Pulse.

  • Inductance: 1200µH
  • Temperature Range: -40°C to 130°C
  • Mounting Type: Surface Mountable
  • Package: Tube
  • Size Dimensions: 0.354" L x 0.339" W (9.00mm x 8.60mm)
  • Category: Transformers - Pulse Transformers
  • Status: Active
