Same model may have multiple batches, images only for reference.

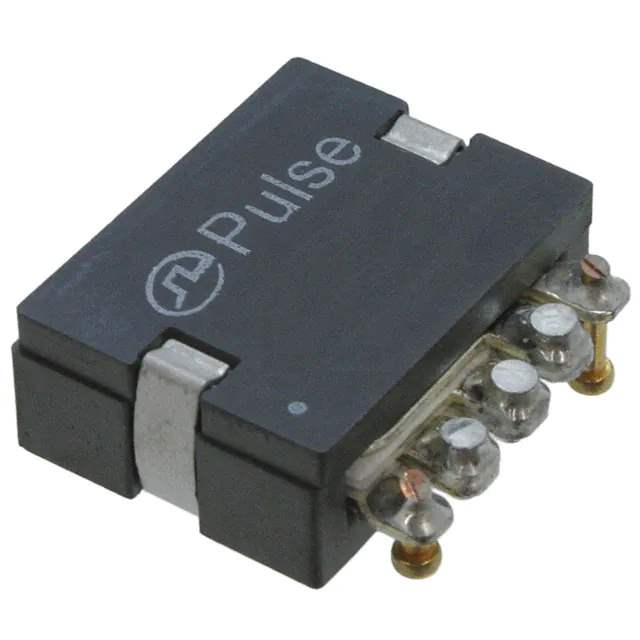

PA1494.162NL Real Image
Same model may have multiple batches, images only for reference.

PA1494.162NL

Part No PA1494.162NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 1.6UH 37A 1.8 MOHM SMD
Datasheet
PA1494.162NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PA1494NL
Package Tray
Product Status Active
Type Planar
Inductance 1.6 µH
Tolerance ±15%
Current Rating (Amps) 37 A
Current - Saturation (Isat) 55A
Shielding Shielded
DC Resistance (DCR) 1.8mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.780" L x 0.770" W (19.81mm x 19.56mm)
Height - Seated (Max) 0.290" (7.37mm)
Standard Package 90 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 652344-PA1494.162NL
Ultra Librarian 3D Model Ultra Librarian PA1494.162NL CAD Model

Description

The 652344-PA1494.162NL is a fixed inductor from the PA1494NL series.

  • Series: PA1494NL
  • Type: Fixed Inductor
  • Style: Planar
  • Shielding: Shielded
  • Size/Dimension: 0.780" L x 0.770" W (19.81mm x 19.56mm)
  • Inductance: 1.6 µH
  • Maximum Seated Height: 0.290" (7.37mm)
  • Mounting Type: Surface Mount
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 1.8mOhm max
  • Current Rating: 37A
  • Temperature Range: -40°C to 130°C
  • REACH: Unaffected
  • ECCN: EAR99
