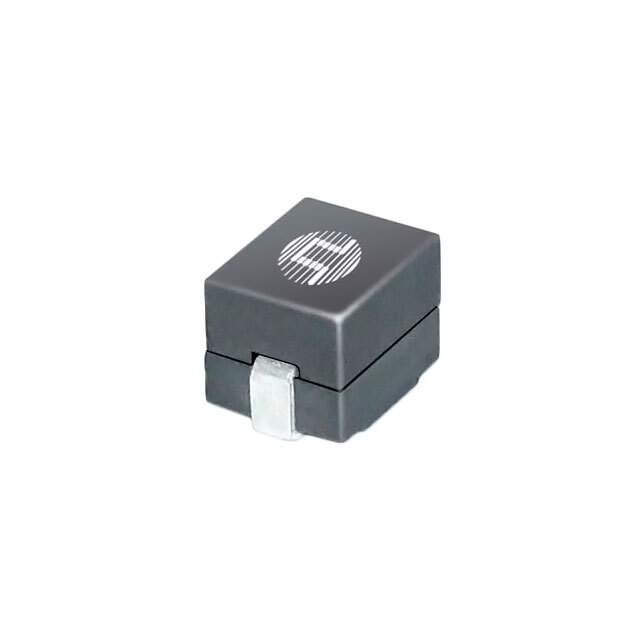

Same model may have multiple batches, images only for reference.

PA3288.221HLT

Name: PA3288.221HLT
Brand: Pulse
SKU: 1083787
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA3288.221HLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 220NH 64A 0.29MOHM SMD / 220 nH Unshielded Inductor 64 A 0.29mOhm Nonstandard
Datasheet	PA3288.221HLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PA3288.XXXHL
Package	Tape & Reel
Inductance	220 nH
Tolerance	±15%
Current Rating (Amps)	64 A
Current - Saturation (Isat)	45A
Shielding	Unshielded
DC Resistance (DCR)	0.29mOhm
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.362" L x 0.244" W (9.20mm x 6.20mm)
Height - Seated (Max)	0.315" (8.00mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	553-PA3288.221HLTTR,553-PA3288.221HLTCT,PA3288.221HLT-ND,553-PA3288.221HLTDKR
Standard Package	560
Win Source Part Number	1083787-PA3288.221HLT
Ultra Librarian 3D Model	Ultra Librarian PA3288.221HLT CAD Model

Alternative Products

Description

The Pulse Electronics Power PA3288.221HLT is a fixed inductor that belongs to the PA3288.XXXHL series.

Frequency: 100 kHz
Inductance: 220 nH
DC Resistance: 0.29mOhm
Current Rating: 64 A
Component Packaging: tape and reel packaging
Height: 8 mm
Tolerance: ±15%
Manufacturer: Pulse Electronics Power
Popularity: low popularity
REACH: unaffected by REACH
