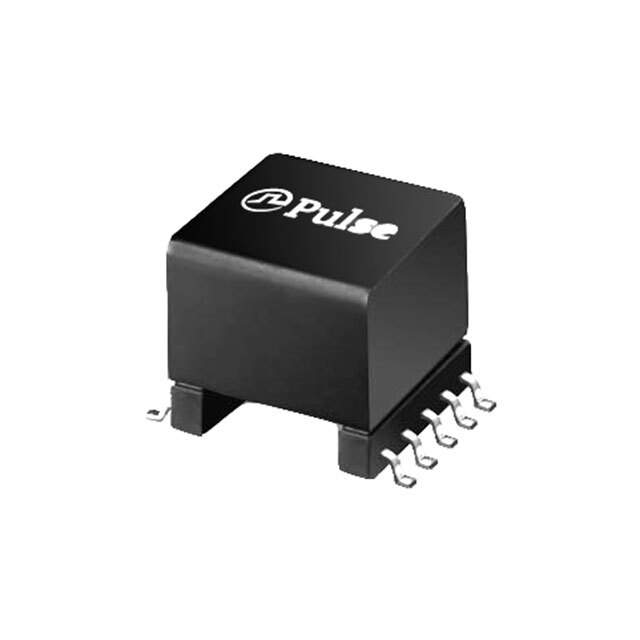

The Pulse PA3856.002NLT is a surface-mount, high isolation transformer designed for use in various isolated power and data transmission applications. Manufactured by Pulse Electronics, this transformer offers excellent performance in terms of isolation voltage, insertion loss, and return loss, making it suitable for applications such as isolated CAN interfaces, industrial automation, and medical equipment.

Applications:

• Isolated CAN (Controller Area Network) interfaces
• Industrial automation systems
• Medical equipment
• Isolated power supplies
• Data communication networks

Features:

• High Isolation Voltage: Provides a high level of electrical isolation between the primary and secondary windings, ensuring safety and reliability.
• Surface-Mount Package: Designed for surface-mount assembly, simplifying manufacturing and reducing board space.
• Low Insertion Loss: Minimizes signal attenuation, ensuring efficient power and data transmission.
• Excellent Return Loss: Reduces signal reflections, improving signal integrity and system performance.
• Wide Operating Temperature Range: Suitable for use in a variety of environmental conditions.

Benefits:

• Enhanced Safety: High isolation voltage protects equipment and personnel from electrical hazards.
• Simplified Manufacturing: Surface-mount design streamlines the assembly process, reducing manufacturing costs.
• Efficient Power Transfer: Low insertion loss maximizes power transfer efficiency, reducing energy consumption.
• Improved Signal Integrity: Excellent return loss minimizes signal reflections, ensuring reliable data communication.
• Robust Performance: Wide operating temperature range ensures stable performance in harsh environments.

Technical Specifications:

The PA3856.002NLT typically features an isolation voltage of several kilovolts (e.g., 3kV or higher) and operates over a temperature range of -40°C to +125°C. It is designed to meet industry standards for safety and performance, such as UL and IEC certifications. The transformer's dimensions are typically small, allowing for dense board layouts. Specific electrical parameters, including turns ratio, inductance, and leakage inductance, are detailed in the product datasheet.

The Pulse PA3856.002NLT isolation transformer offers a robust and reliable solution for applications requiring high levels of electrical isolation and efficient power/data transfer. Its features and benefits make it a suitable choice for enhancing the safety and performance of various electronic systems.
