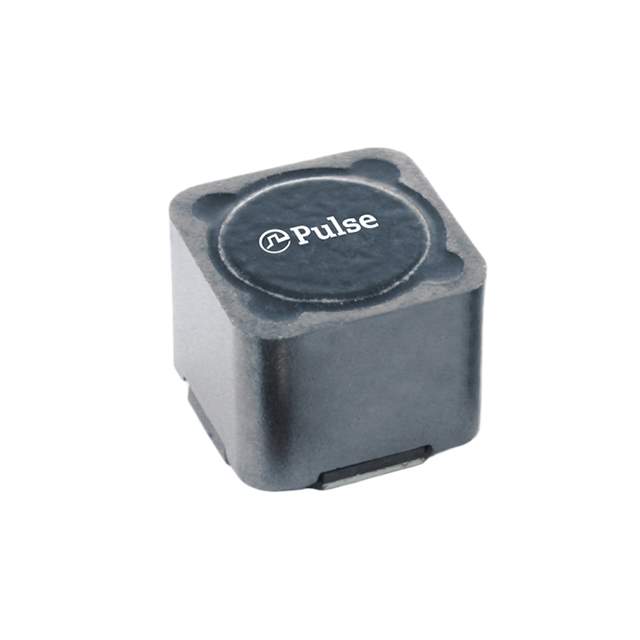

Same model may have multiple batches, images only for reference.

PA4320.103NLT

Name: PA4320.103NLT
Brand: Pulse
SKU: 1337622
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PA4320.103NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 10UH 7.6A 16 MOHM SMD / 10 µH Shielded Wirewound Inductor 7.6 A 16mOhm Max Nonstandard
Datasheet	PA4320.103NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse Electronics
Series	PA4320
Package	Tape & Reel
Type	Wirewound
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	7.6 A
Current - Saturation (Isat)	9.6A
Shielding	Shielded
DC Resistance (DCR)	16mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)	0.402" (10.20mm)
Standard Package	300
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1337622-PA4320.103NLT
Ultra Librarian 3D Model	Ultra Librarian PA4320.103NLT CAD Model

Alternative Products

Description

The PA4320 series of fixed inductors from Pulse Electronics is a wirewound type with a shielding feature.

Type: Wirewound, Shielded
Package: Tape and Reel
Size: 0.472 inches Length and Width
Inductance: 10 microhenries ±20%
DC Resistance: 16 milliohms Maximum
Current Rating: 7.6 amps
Height Seated: 0.402 inches
Operating Temperature: -40°C and 125°C
Mounting Type: Surface Mount
Package/Case: Nonstandard
REACH: Unaffected
ECCN: EAR99
