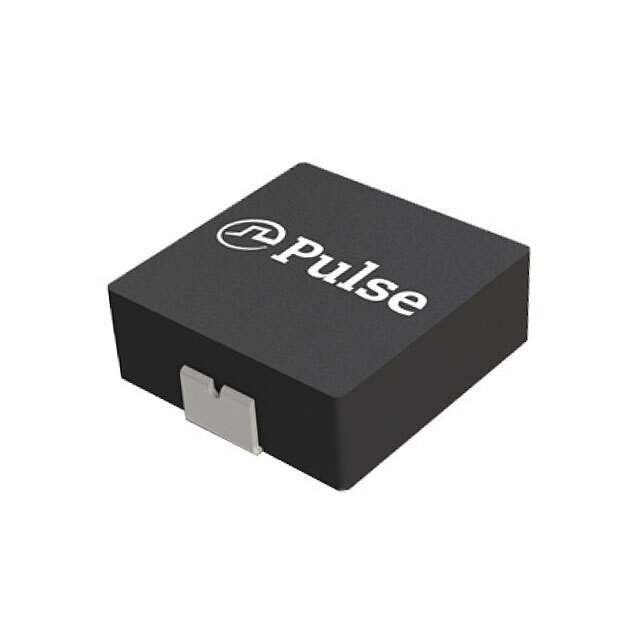

Same model may have multiple batches, images only for reference.

PA4342.102NLT

Name: PA4342.102NLT
Brand: Pulse
SKU: 980645
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PA4342.102NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 1UH 18A 3.3 MOHM SMD / 1 µH Shielded Molded Inductor 18 A 3.3mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PA4342.XXXNLT
Package	Tape & Reel
Type	Molded
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	18 A
Current - Saturation (Isat)	36A
Shielding	Shielded
DC Resistance (DCR)	3.3mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.453" L x 0.406" W (11.50mm x 10.30mm)
Height - Seated (Max)	0.157" (4.00mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	553-2997-2,553-2997-1,553-2997-6,-PA4342.102NLT
Standard Package	500
Win Source Part Number	980645-PA4342.102NLT
Ultra Librarian 3D Model	Ultra Librarian PA4342.102NLT CAD Model

Alternative Products

Description

The PA4342.102NLT is a fixed inductor from Pulse Electronics Power that has an inductance of 1 µH and a current rating of 18 A.

Inductance: 1 µH
Current Rating: 18 A
Package: Shielded SMD (SMT)
Height: 0.157" (4.00mm)
Dimensions: 0.453" L x 0.406" W (11.50mm x 10.30mm)
DC Resistance (DCR): 3.3mOhm Max
Tolerance: ±20%
RoHS Compliant: Yes
Operating Temperature: -40°C ~ 125°C
Current Saturation (Isat): 36A
