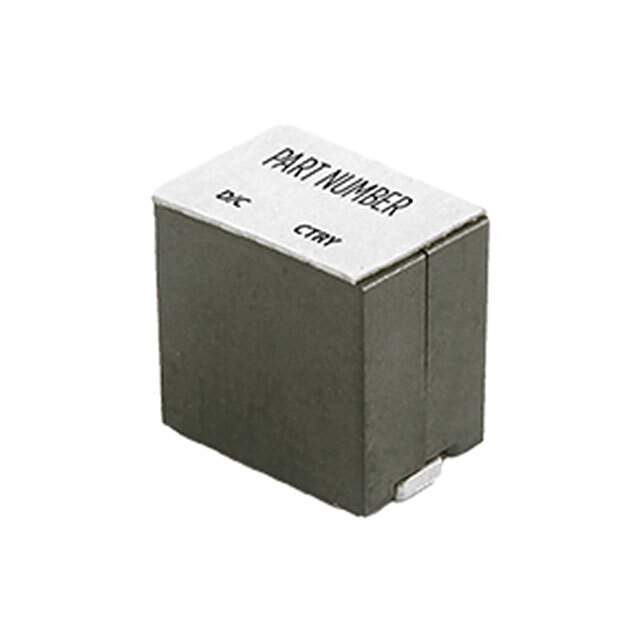

Same model may have multiple batches, images only for reference.

PA4390.331AHLT

Name: PA4390.331AHLT
Brand: Pulse
SKU: 1329262
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA4390.331AHLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 330NH 42A 0.4 MOHM SMD / 330 nH Shielded Inductor 42 A 0.4mOhm Max Nonstandard, 2 Lead
Datasheet	PA4390.331AHLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Reel - TR
Inductance	330 nH
Tolerance	±15%
Current Rating (Amps)	42 A
Current - Saturation (Isat)	30A
Shielding	Shielded
DC Resistance (DCR)	0.4mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard, 2 Lead
Size / Dimension	0.394" L x 0.256" W (10.00mm x 6.50mm)
Height - Seated (Max)	0.354" (9.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	553-PA4390.331AHLTDKR,PA4390.331AHLT-ND,553-PA4390.331AHLTCT,553-PA4390.331AHLTTR
Standard Package	350
Win Source Part Number	1329262-PA4390.331AHLT
Ultra Librarian 3D Model	Ultra Librarian PA4390.331AHLT CAD Model

Alternative Products

Description

The Pulse Electronics 1329262-PA4390.331AHLT inductor is a shielded component used in electronic devices.

Inductance: 330 nH
Tolerance: ±15%
Size: 0.394" L x 0.256" W (10.00mm x 6.50mm)
Height: 0.354" (9.00mm)
DC Resistance (DCR): 0.4mOhm Max
Operating Temperature: -40°C ~ 130°C
Mounting: Surface Mountable
Current Rating: 42 A
RoHS Compliant: Yes
Case/Package: Nonstandard, 2 Lead
