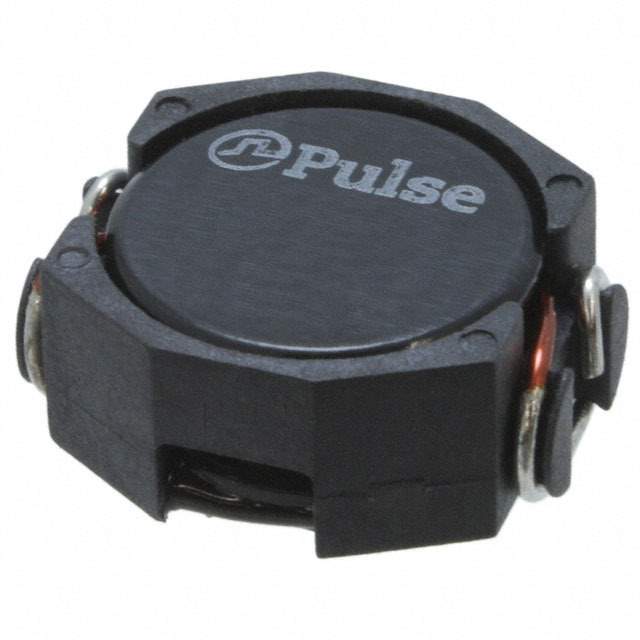

PB2020.223NLT

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PB2020.223NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 22UH 8.1A 20 MOHM SMD / 22 µH Unshielded Wirewound Inductor 8.1 A 20mOhm Max Nonstandard
Datasheet	PB2020.223NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PB2020NL
Package	Tape & Reel
Type	Wirewound
Inductance	22 µH
Tolerance	±20%
Current Rating (Amps)	8.1 A
Current - Saturation (Isat)	13A
Shielding	Unshielded
DC Resistance (DCR)	20mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.940" L x 0.820" W (23.87mm x 20.83mm)
Height - Seated (Max)	0.400" (10.16mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	553-2000-6,PB2020.223NLT-ND,PB2020223NLT,553-2000-2,553-2000-1
Standard Package	100
Win Source Part Number	1009822-PB2020.223NLT
Ultra Librarian 3D Model	Ultra Librarian PB2020.223NLT CAD Model

Alternative Products

Description

The PB2020NL series wirewound inductor is a fixed inductor from Pulse Electronics Power.

Type: Fixed Inductor
Package: Tape & Reel
Shielding: Unshielded
Inductance: 22 µH
Tolerance: ±20%
DC Resistance (DCR): 20mOhm Max
Current Rating (Amps): 8.1 A
Height: 0.400" (10.16mm) Max Seated
Dimensions: 0.940" L x 0.820" W (23.87mm x 20.83mm)
Operating Temperature: -40°C ~ 130°C
REACH: Unaffected
ECCN: EAR99
MSL Level: 1 (Unlimited)
Alternative Names: 553-2000-6, PB2020.223NLT-ND, PB2020223NLT, 553-2000-2, 553-2000-1
