Same model may have multiple batches, images only for reference.

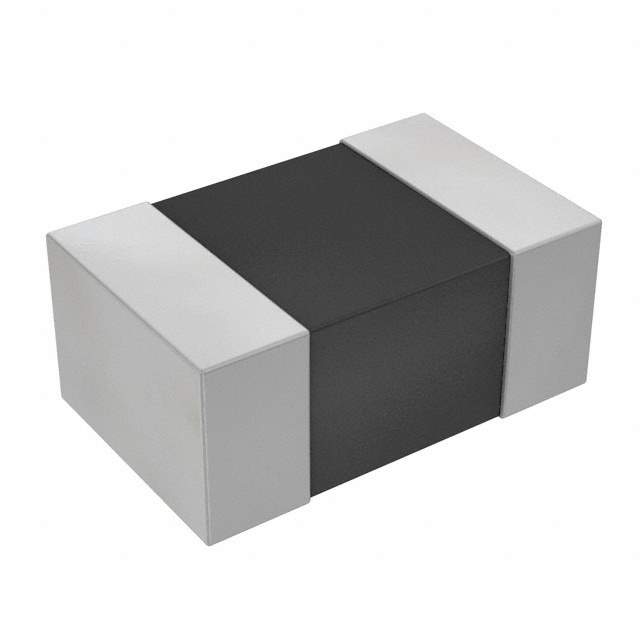

PE-0805FB102ST Real Image
Same model may have multiple batches, images only for reference.

PE-0805FB102ST

Part No PE-0805FB102ST
Manufacturer Pulse
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 1 KOHM 0805 1LN / 1 kOhms @ 100 MHz 1 Signal Line Ferrite Bead 0805 (2012 Metric) 500mA 400mOhm
Datasheet
PE-0805FB102ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer Pulse Electronics
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 1 kOhms @ 100 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 400mOhm
Temperature Range - Operating -40°C ~ 105°C
Case / Package 0805 (2012 Metric)
Mounting Surface Mount
Height (Max) 0.041" (1.05mm)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 553-2390-6,553-2390-2,553-2390-1
Standard Package 4,000
Win Source Part Number 1328072-PE-0805FB102ST
Ultra Librarian 3D Model Ultra Librarian PE-0805FB102ST CAD Model

Description

The PE-0805FB102ST is a signal line ferrite bead and chip filter from Pulse Electronics.

  • Category: Filters
  • Packaging: Reel-TR
  • Size/Dimension: 0.079 inches in length and 0.049 inches in width (2.00mm x 1.25mm)
  • Height: 0.041 inches (1.05mm)
  • Current Rating: 500mA
  • Standard Package: 4,000
  • Mounting Type: Surface-mount
  • Filter Type: Signal Line
  • Lines: Single
  • Impedance: 1 kOhms @ 100 MHz frequency
  • DC Resistance (DCR): 400mOhm
  • Temperature Range: -40 to 105 degrees Celsius
  • ECCN: EAR99
  • HTSUS: 8548.00.0000
