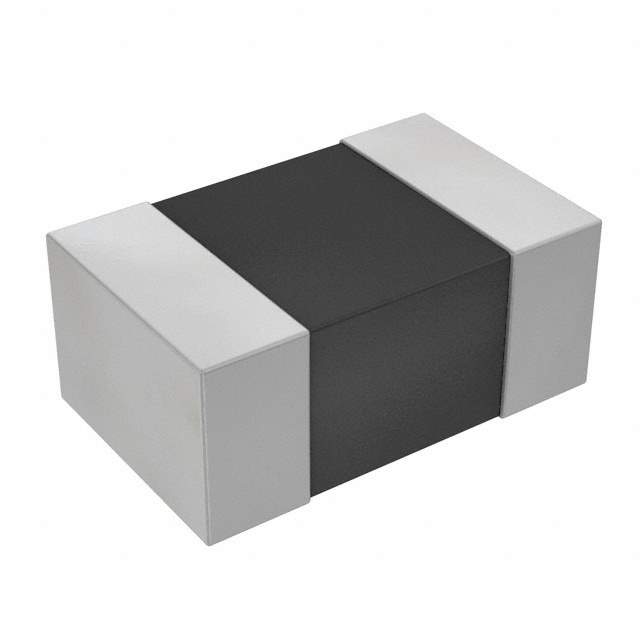

PE-0805FB601ST Real Image
Same model may have multiple batches, images only for reference.

PE-0805FB601ST

Part No PE-0805FB601ST
Manufacturer Pulse
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 600 OHM 0805 1LN / 600 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0805 (2012 Metric) 500mA 300mOhm
Datasheet
PE-0805FB601ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer Pulse Electronics
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 600 Ohms @ 100 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 300mOhm
Temperature Range - Operating -40°C ~ 105°C
Case / Package 0805 (2012 Metric)
Mounting Surface Mount
Height (Max) 0.041" (1.05mm)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 553-2392-6,553-2392-2,553-2392-1
Standard Package 4,000
Win Source Part Number 1328073-PE-0805FB601ST
Ultra Librarian 3D Model Ultra Librarian PE-0805FB601ST CAD Model

Description

The Pulse Electronics 1328073-PE-0805FB601ST is a ferrite bead filter with a signal line filter type.

  • Impedance: 600 Ohms @ 100 MHz
  • DC Resistance: 300mOhm max
  • RoHS Compliant: Yes
  • Packaging: reel - TR
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Current Rating: 500mA
  • Standard Package: 4,000
  • Mounting Type: Surface Mount
  • Height: 0.041" (1.05mm)
