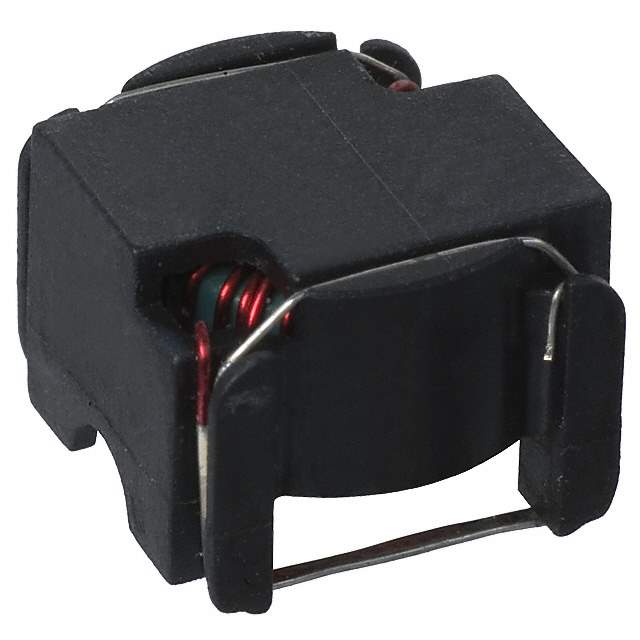

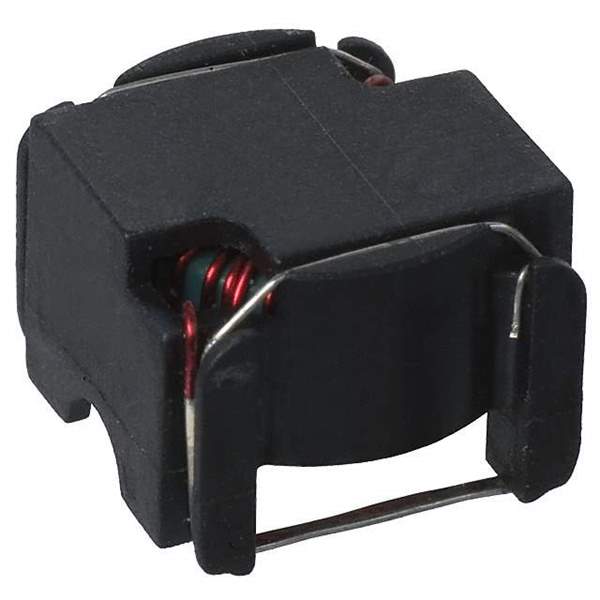

Same model may have multiple batches, images only for reference.

PE-53631NL

Name: PE-53631NL
Brand: Pulse
SKU: 1327517
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PE-53631NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 9.4UH 2.8A 43.4MOHM SM / 9.4 µH Unshielded Toroidal Inductor 2.8 A 43.4mOhm Max Nonstandard
Datasheet	PE-53631NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Tube
Type	Toroidal
Inductance	9.4 µH
Current Rating (Amps)	2.8 A
Shielding	Unshielded
DC Resistance (DCR)	43.4mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.440" L x 0.435" W (11.18mm x 11.05mm)
Height - Seated (Max)	0.360" (9.14mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	PE53631NL,553-1435
Standard Package	45
Win Source Part Number	1327517-PE-53631NL
Ultra Librarian 3D Model	Ultra Librarian PE-53631NL CAD Model

Alternative Products

Description

The PE-53631NL is a Fixed Inductor that comes in Tube packaging.

Category: Inductors, Coils, Chokes
Inductance: 9.4 µH
Operating Temperature Range: -40°C to 130°C
Dimension: 0.440" L x 0.435" W (11.18mm x 11.05mm)
Mounting: Surface Mount
Manufacturer: Pulse Electronics
Standard Package: 45
ECCN: EAR99
RoHS Compliant: Yes
DC Resistance (DCR): 43.4mOhm Max
Current Rating (Amps): 2.8 A
