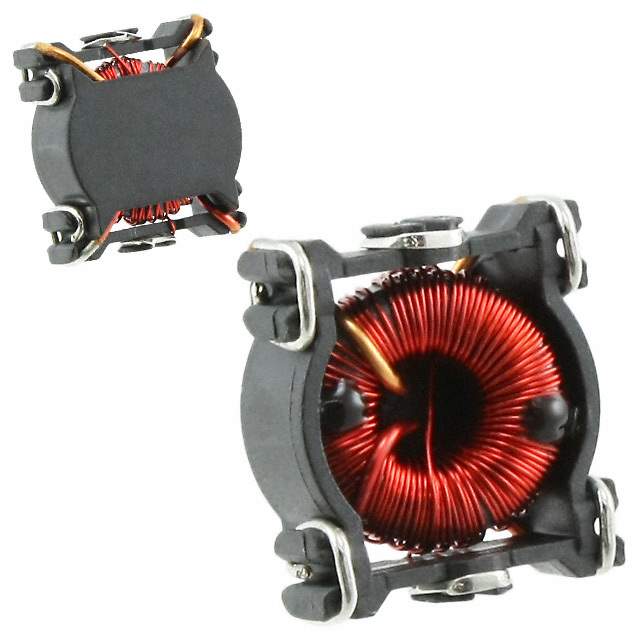

PE-68280NL Real Image
Same model may have multiple batches, images only for reference.

PE-68280NL

Part No PE-68280NL
Manufacturer Pulse
Catalog Current Sense Transformers
Description XFRMR CURR SENSE 1:1:100 15A SMD
Datasheet
PE-68280NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Frequency Range 50kHz to 500kHz
Type Invasive
Inductance 14.8mH
DC Resistance (DCR) 1.15 mOhm Primary, 930 mOhm Secondary
Mounting SMD (SMT)
Height - Seated (Max) 0.280" (7.11mm)
Win Source Part Number 045713-PE-68280NL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE-68280NL CAD Model

Description

The Pulse Electronics Corporation 045713-PE-68280NL is an invasive type transformer that has a current rating and weight of unknown values.

  • Height (Seated): 0.280" (7.11mm)
  • Mounting Type: SMD (SMT)
  • Frequency Range: 50kHz to 500kHz
  • Inductance: 14.8mH
  • DCR (Primary): 1.15 mOhm
  • DCR (Secondary): 930 mOhm
  • Supply and Demand Status: Balanced
