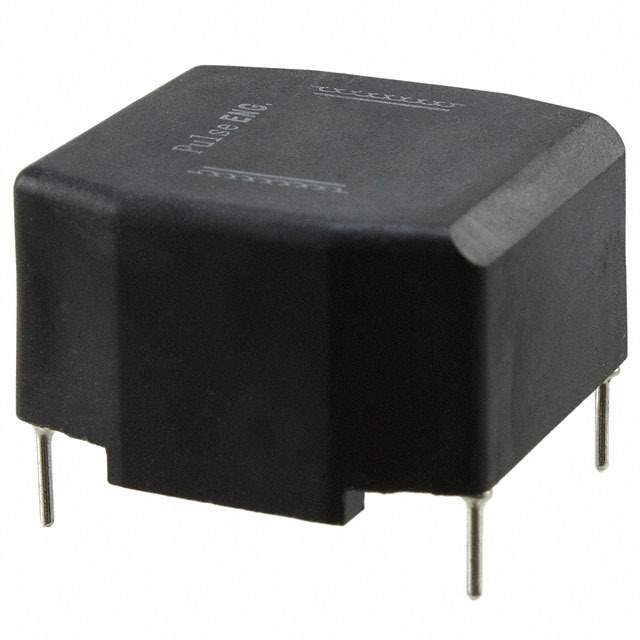

PE-96175 Real Image
Same model may have multiple batches, images only for reference.

PE-96175

Part No PE-96175
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 3.15A 2LN TH
Datasheet
PE-96175 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 3.15A (Typ)
DC Resistance (DCR) (Max) 70 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Height (Max) 0.660" (16.76mm)
Dimension Horizontal, 4 PC Pin
Win Source Part Number 209783-PE-96175
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-96175 CAD Model

Description

The 209783-PE-96175 is a power line filter manufactured by Pulse Electronics Corporation.

  • Mounting Type: Through Hole
  • Maximum Height: 0.660 inches
  • Lines: 2
  • DC Resistance: 70 mOhm
  • Category: Filters
  • Supply and Demand Status: Limited
  • Filter Type: Power Line
  • Operating Temperature Range: -40°C to 125°C
