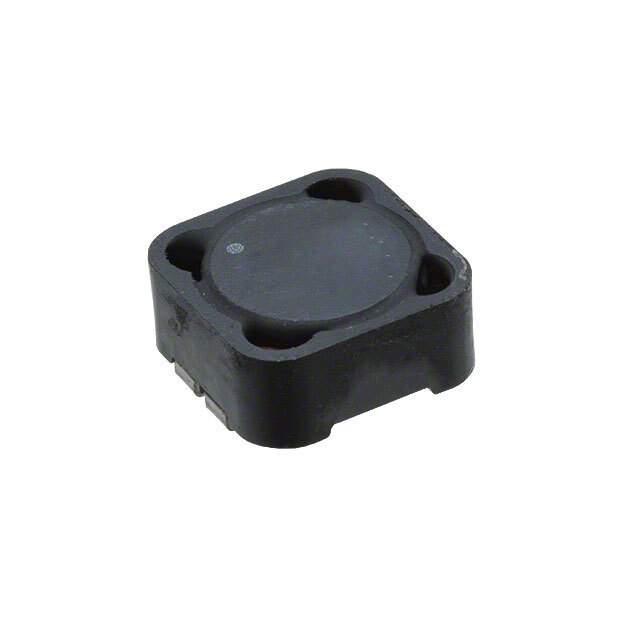

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Pulse Electronics Power
Series PF0552NL
Package Tape & Reel (TR)
Number of Coils 2
Inductance - Connected In Parallel 680 µH
Inductance - Connected In Series 2.7 mH
Tolerance ±20%
Current Rating - Parallel 810 mA
Current Rating - Series 400 mA
Current Saturation - Parallel 860 mA
Current Saturation - Series 430 mA
DC Resistance (DCR) - Parallel 1Ohm Max
DC Resistance (DCR) - Series 4.1Ohm Max
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.236" (6.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1314991-PF0552.684NLT
Ultra Librarian 3D Model Ultra Librarian PF0552.684NLT CAD Model

Description

The PF0552.684NLT is an inductor array manufactured by Pulse Electronics Power.

  • Series: PF0552NL
  • Shielded: Yes
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Height: 0.236" (6.00mm)
  • Number of Coils: 2
  • Inductance (Series): 2.7 mH
  • Inductance (Parallel): 680 µH
  • Current Rating (Parallel): 810 mA
  • Current Rating (Series): 400 mA
  • Current Saturation (Parallel): 860 mA
  • Current Saturation (Series): 430 mA
  • DC Resistance (DCR) (Parallel): 1Ohm Max
  • DC Resistance (DCR) (Series): 4.1Ohm Max
  • Package/Case: Nonstandard
  • Operating Temperature: -40°C to 125°C
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8504.50.4000
