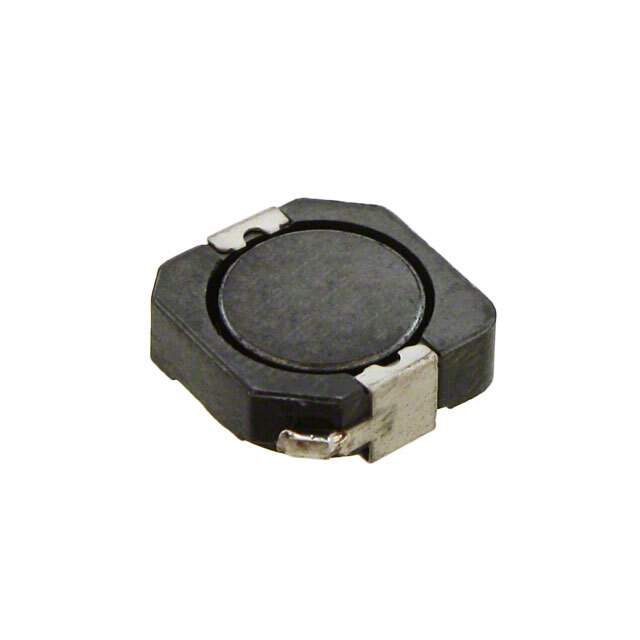

Same model may have multiple batches, images only for reference.

PF0560.103NL

Name: PF0560.103NL
Brand: Pulse
SKU: 1383147
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PF0560.103NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 10UH 3.8A 35 MOHM SMD / 10 µH Shielded Wirewound Inductor 3.8 A 35mOhm Max Nonstandard
Datasheet	PF0560.103NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse
Series	PF0560NL
Package	Tray
Type	Wirewound
Material - Core	-
Inductance	10 µH
Tolerance	±30%
Current Rating (Amps)	3.8 A
Current - Saturation (Isat)	4.4A
Shielding	Shielded
DC Resistance (DCR)	35mOhm Max
Q @ Freq	-
Frequency - Self Resonant	25MHz
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.409" L x 0.406" W (10.40mm x 10.30mm)
Height - Seated (Max)	0.157" (4.00mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	90 pcs
Win Source Part Number	1383147-PF0560.103NL
Ultra Librarian 3D Model	Ultra Librarian PF0560.103NL CAD Model

Alternative Products

Description

The PF0560.103NL is a fixed inductor from Pulse. It has an inductance of 10µH with a ±30% tolerance.

Manufacturer: Pulse
Inductance: 10µH
Tolerance: ±30%
Size: 0.409" L x 0.406" W (10.40mm x 10.30mm)
Seated Height: 0.157" (4.00mm)
Mounting Type: Surface Mount
Package: Nonstandard
DC Resistance: 35mOhm max
Current Rating: 3.8A
Operating Temperature: -40°C to 125°C
REACH Compliant: Yes
Moisture Sensitivity Level: 1 (unlimited)
