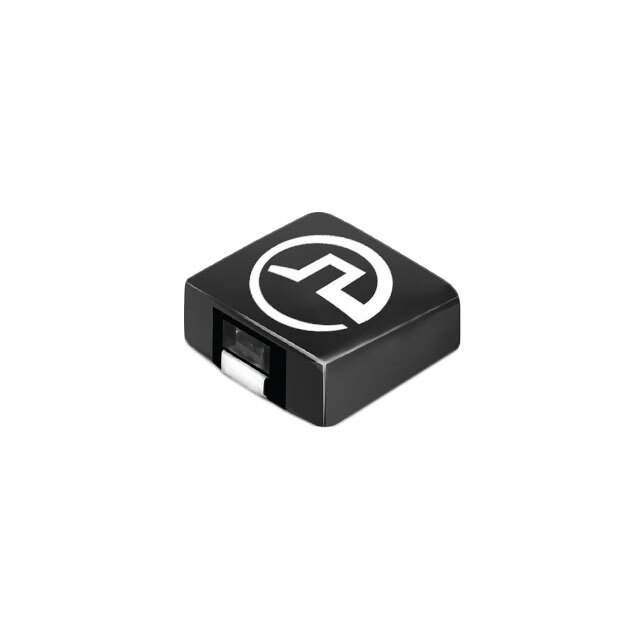

PG0255.102NL

Name: PG0255.102NL
Brand: Pulse
SKU: 1329637
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PG0255.102NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 1UH 21A 3.2 MOHM SMD / 1 µH Shielded Wirewound Inductor 21 A 3.2mOhm Max Nonstandard
Datasheet	PG0255.102NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Tray
Type	Wirewound
Inductance	1 µH
Tolerance	±15%
Current Rating (Amps)	21 A
Current - Saturation (Isat)	27A
Shielding	Shielded
DC Resistance (DCR)	3.2mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.453" L x 0.406" W (11.50mm x 10.30mm)
Height - Seated (Max)	0.157" (4.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	-PG0255.102NL,553-3653
Standard Package	60
Win Source Part Number	1329637-PG0255.102NL
Ultra Librarian 3D Model	Ultra Librarian PG0255.102NL CAD Model

Alternative Products

Description

The Pulse Electronics 1329637-PG0255.102NL is a wirewound type inductor with a shielding feature.

Size/Dimension: 0.453" L x 0.406" W (11.50mm x 10.30mm)
Inductance: 1 µH
Tolerance: ±15%
DC Resistance (DCR): 3.2mOhm Max
Current Rating: 21A
Saturation Current: 27A
Mounting: Surface Mount Device
Standard Package: 60
Temperature Range: -40°C to 125°C
RoHS Compliant: Yes
