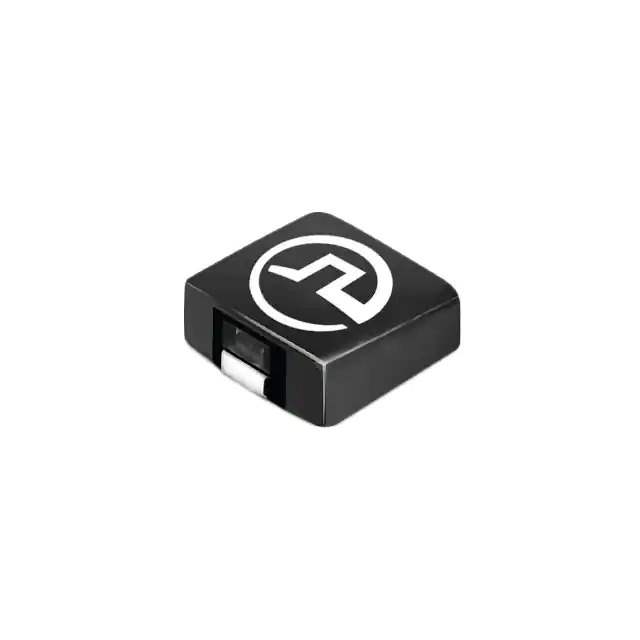

PG0426.681NL

Name: PG0426.681NL
Brand: Pulse
SKU: 654437
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PG0426.681NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 680NH 15.5A 5.4MOHM SM
Datasheet	PG0426.681NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	PG0426NL
Package	Tray
Product Status	Active
Type	Wirewound
Inductance	680 nH
Tolerance	±20%
Current Rating (Amps)	15.5 A
Current - Saturation (Isat)	25A
Shielding	Shielded
DC Resistance (DCR)	5.4mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.295" L x 0.276" W (7.50mm x 7.00mm)
Height - Seated (Max)	0.126" (3.20mm)
Standard Package	140 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	654437-PG0426.681NL
Ultra Librarian 3D Model	Ultra Librarian PG0426.681NL CAD Model

Alternative Products

Description

The PG0426.681NL is a wirewound fixed inductor from the PG0426NL series.

Type: Shielded inductor
Size: 0.295" L x 0.276" W (7.50mm x 7.00mm)
Height: 0.126" (3.20mm)
Inductance: 680 nH
Tolerance: ±20%
DC Resistance (DCR): 5.4mOhm max
Current Rating: 15.5 A
Operating Temperature Range: -40°C to 130°C
Mounting: Surface mount
Package: Nonstandard
