Same model may have multiple batches, images only for reference.

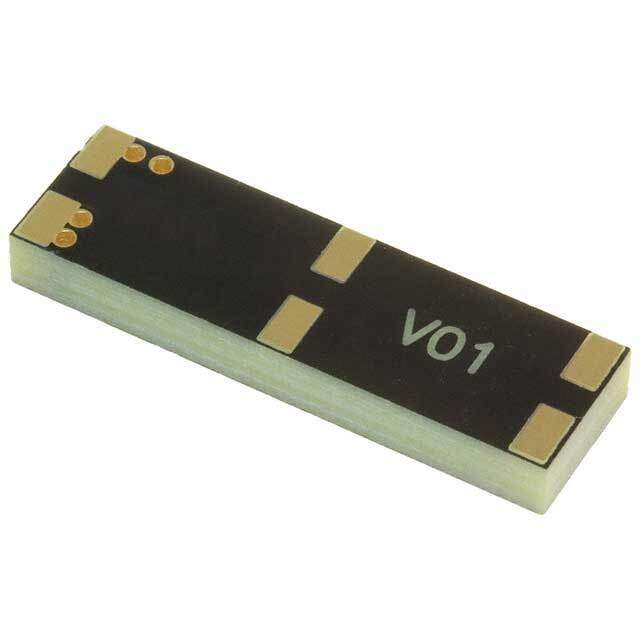

W3544B Real Image
Same model may have multiple batches, images only for reference.

W3544B

Part No W3544B
Manufacturer PulseLarsen Antennas
Catalog RF Antennas
Description RF ANT 850MHZ/900MHZ CHIP SLD
Datasheet
W3544B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 15 Weeks
Features 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz GSM Chip RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz -1.5dBi, -1.1dBi, -1.1dBi, -1.5dBi Solder Surface Mount
Manufacturer PulseLarsen Antennas
Package Reel - TR
Mounting Surface Mount
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8529.10.9100
Other Part Number 553-2573-ND, -W3544B, 553-2573-2, W3544B-ND, 553-2573-1, 553-2573, 553-2573-6
Quantity per package 140
Popularity High
Supply and Demand Status Balance
Win Source Part Number 903192-W3544B
Ultra Librarian 3D Model Ultra Librarian W3544B CAD Model

Description

The PulseLarsen Antennas W3544B is a GSM chip RF antenna that can operate within a frequency range of 850MHz, 900MHz, 1.8GHz, 1.9GHz, and 2.1GHz.

  • Frequency Range: 850MHz, 900MHz, 1.8GHz, 1.9GHz, and 2.1GHz
  • Mounting Type: Solder Surface Mount
  • Package Quantity: 140 units
  • Category: RF/IF and RFID
  • Popularity: High
  • Estimated Production Lead Time: 15 weeks
