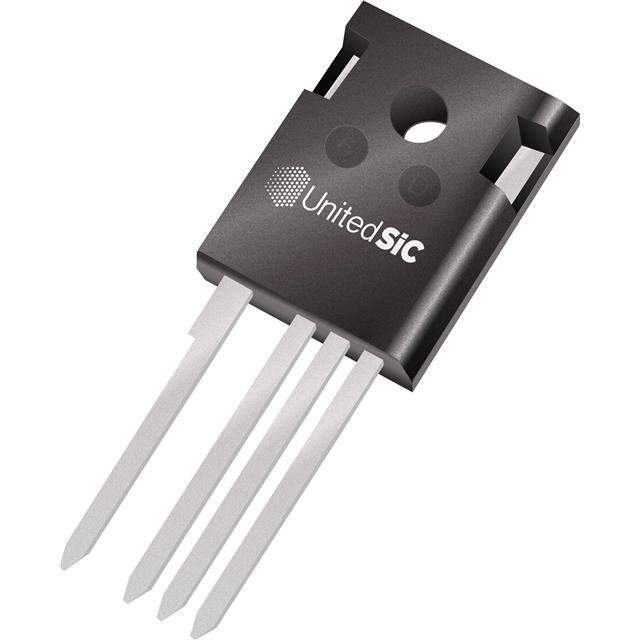

The 1340166-UJ4SC075011K4S is an N-channel SiCFET transistor with a cascode SiCJFET technology.

• Drain to Source Voltage (Max): 750V
• Power Dissipation: 357W (Tc)
• Mounting Type: Through Hole
• Package: TO-247-4
• Vgs (Max): ±20V
• Temperature Range: -55°C to 175°C (TJ)
• Manufacturer: Qorvo
• Drive Voltage: 12V
• Continuous Drain Current (Id): 104A (Tc)
• Rds On (Max) @ Id, Vgs: 14.2mOhm @ 60A, 12V
• Vgs(th) (Max) @ Id: 5.5V @ 10mA
• Gate Charge (Qg) (Max) @ Vgs: 75 nC @ 15 V
• Input Capacitance (Ciss) (Max) @ Vds: 3245 pF @ 400 V
