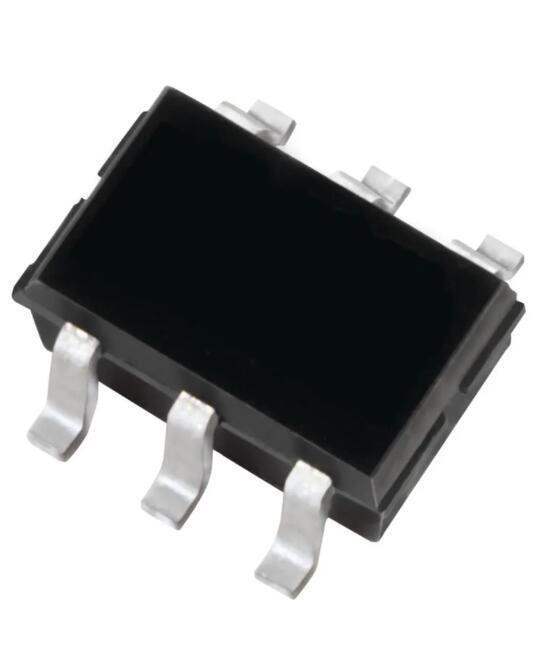

QPA4463ASR

Name: QPA4463ASR
Brand: Qorvo US Inc.
SKU: WS1604077
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	QPA4463ASR
Manufacturer	Qorvo US Inc.
Catalog	RF Amplifiers
Description	RF Amplifier DC-3.5GHZ NF 2.8dB Gain 16.3dB
Datasheet	QPA4463ASR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Qorvo
Category	RF Amplifier
Operating Frequency	0 Hz to 3.5 GHz
Operating Supply Voltage	3.2 V
Operating Supply Current	45 mA
Gain	15.6 dB
NF - Noise Figure	2.8 dB
Type	Gain Block Amplifiers
Mounting Style	SMD/SMT
Package / Case	SOT-363-6
Technology	SiGe
P1dB - Compression Point	14.9 dBm
OIP3 - Third Order Intercept	29.5 dBm
Ultra Librarian 3D Model	Ultra Librarian QPA4463ASR CAD Model

Alternative Products

Description

The QPA4463A is a high performance SiGe HBT MMIC amplifier. A Darlington configuration provides high FT and excellent thermal performance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products.
The QPA4463A may be operated from a variety of supply voltages by using a voltage dropping resistor. Two DCblocking capacitors, bypass capacitors and an optional RF choke complete the circuit required for operation of this internally matched 50 ohm device.
