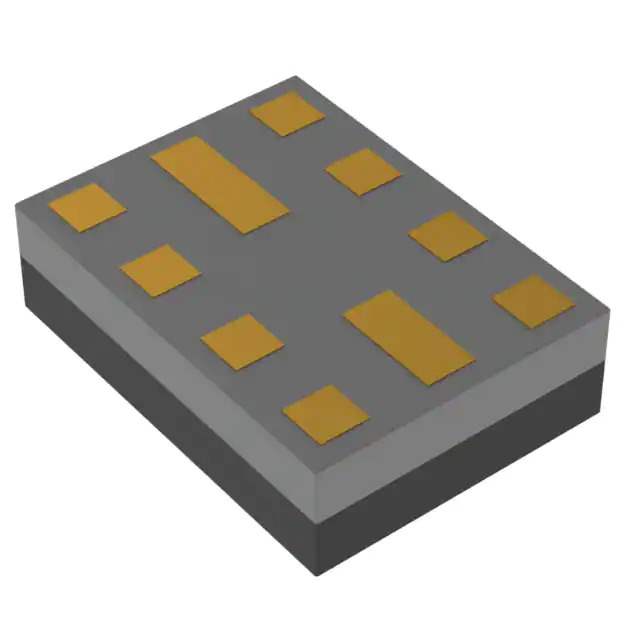

B39161B5051Z710 Real Image
Same model may have multiple batches, images only for reference.

B39161B5051Z710

Part No B39161B5051Z710
Manufacturer Qualcomm
Catalog SAW Filters
Description FILTER SAW 161.28MHZ 10SMD / 161.28MHz Frequency Base Stations RF SAW Filter (Surface Acoustic Wave) 9.2dB 20MHz Bandwidth 10-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr Qualcomm
Package Tape & Reel
Product Status Obsolete
Frequency - Center 161.28MHz
Bandwidth 20MHz
Insertion Loss 9.2dB
Applications Base Stations
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Height (Max) 0.063" (1.60mm)
Size / Dimension 0.360" L x 0.189" W (9.15mm x 4.80mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 863033-B39161B5051Z710
Ultra Librarian 3D Model Ultra Librarian B39161B5051Z710 CAD Model

Description

The 863033-B39161B5051Z710 is an obsolete SAW filter designed for base station applications.

  • Size / Dimension: 0.360" L x 0.189" W (9.15mm x 4.80mm)
  • Height - Max: 0.063" (1.60mm)
  • Insertion Loss: 9.2dB
  • Bandwidth: 20MHz
  • Frequency Center: 161.28MHz
  • Package / Case: 10-SMD, No Lead
  • Packaging: Tape & Reel (TR)
  • Standard Package: 3,000 Pieces
  • Manufacturer: Qualcomm
  • Product Status: Obsolete
