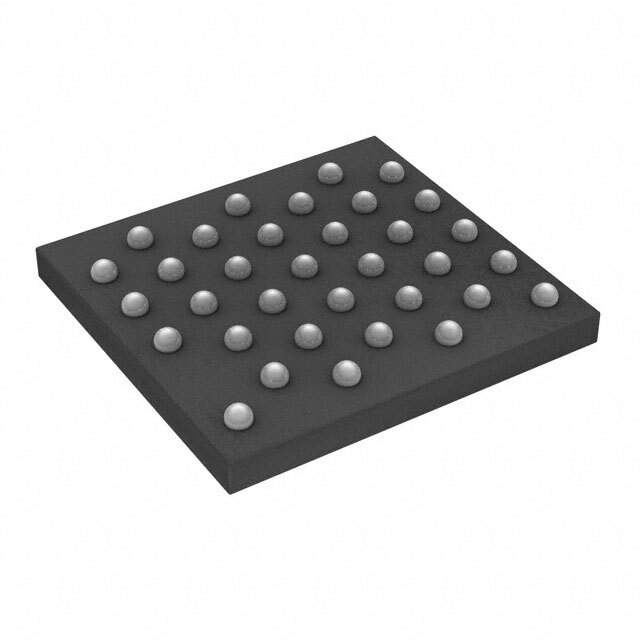

CSR1013A05-IUUM-R Real Image
Same model may have multiple batches, images only for reference.

CSR1013A05-IUUM-R

Part No CSR1013A05-IUUM-R
Manufacturer Qualcomm
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 34XFBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Features IC RF TxRx + MCU Bluetooth Bluetooth v4.0 2.4GHz 34-XFBGA, WLCSP
Manufacturer QUALCOMM
Series µEnergy®
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount
Package 34-XFBGA, WLCSP
Family Name CSR1013
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.39.0001
Other Part Number CSR1013A05-IUUM-RTR, CSR1013A05-IUUM-RDKR, CSR1013A05-IUUM-RCT
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 867388-CSR1013A05-IUUM-R
Ultra Librarian 3D Model Ultra Librarian CSR1013A05-IUUM-R CAD Model

Description

The QUALCOMM 867388-CSR1013A05-IUUM-R is an IC RF TxRx + MCU Bluetooth designed for Bluetooth v4.0 applications.

  • Manufacturer: QUALCOMM
  • Frequency: 2.4GHz
  • Package / Case: 34-XFBGA, WLCSP
  • Packaging: Reel
  • Quantity: 2000
  • Category: RF/IF and RFID
  • Part Status: Not For New Designs
  • Family Name: CSR1013
  • Operating Temperature: -30°C to 85°C
  • ECCN: 5A992C
  • Supply and Demand Status: Limited
  • REACH: Unaffected
  • HTSUS: 8542.39.0001
  • Other Part Numbers: CSR1013A05-IUUM-RTR, CSR1013A05-IUUM-RDKR, CSR1013A05-IUUM-RCT
