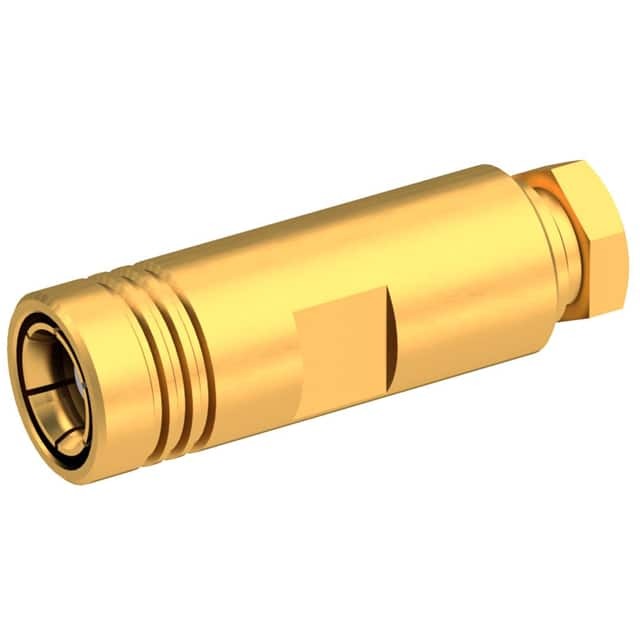

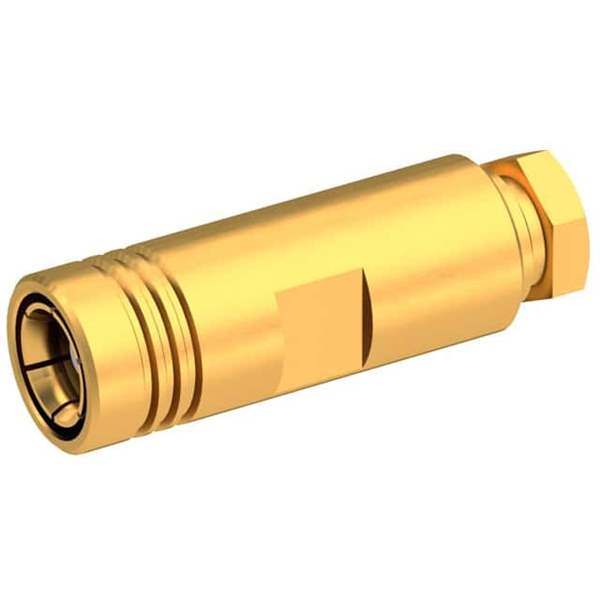

R114005000

Name: R114005000
Brand: Radiall USA, Inc.
SKU: 931217
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	R114005000
Manufacturer	Radiall USA, Inc.
Catalog	Coaxial Connectors (RF) - Assemblies
Description	SMB / STRAIGHT PLUG CLAMP TYPE C
Datasheet	R114005000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr	Radiall USA, Inc.
Package	Box
Product Status	Active
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Shield Termination	Clamp
Impedance	50Ohm
Mounting Type	Free Hanging (In-Line)
Cable Group	RG-174, 179, 187, 188, 316
Fastening Type	Snap-On
Frequency - Max	4 GHz
Number of Ports	1
Housing Color	Gold
Center Contact Material	Beryllium Copper
Body Material	Brass
Body Finish	Gold
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-65°C ~ 165°C
Voltage Rating	335 V
Mating Cycles	500
Base Product Number	R11400
Standard Package	100 pcs
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4010
Win Source Part Number	931217-R114005000
Ultra Librarian 3D Model	Ultra Librarian R114005000 CAD Model

Alternative Products

Description

The 931217-R114005000 is a Coaxial Connector (RF) Assembly designed for high-frequency applications.

Connector Type: Plug and Female Socket
Fastening Type: Snap-On
Material: Brass
Body Finish: Gold
Impedance: 50Ohm
Maximum Frequency: 4 GHz
Contact Termination: Solder
Connector Style: SMB
Compatible Cable Groups: RG-174, 179, 187, 188, and 316
Voltage Rating: 335V
Temperature Range: -65°C to 165°C
Package: Box
Package Quantity: 100
Series: R11400
Manufacturer: Radiall USA, Inc.
Applications: Telecommunications, Automotive, and Aerospace
