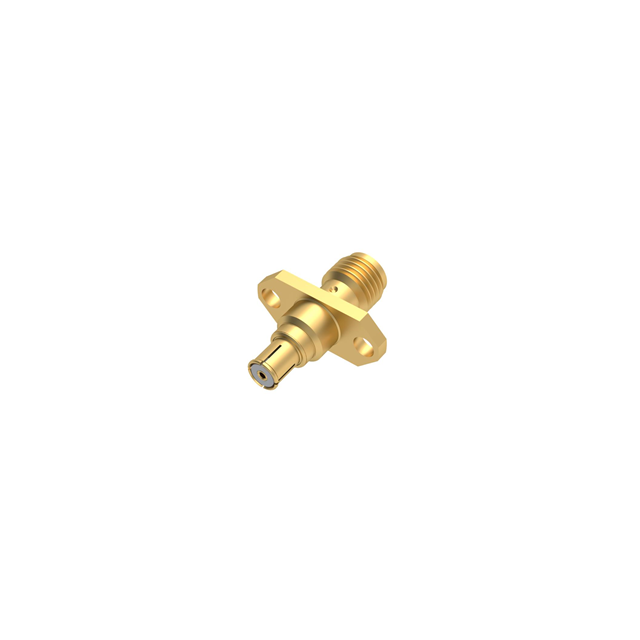

R191553400 Real Image
Same model may have multiple batches, images only for reference.

R191553400

Part No R191553400
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF)
Description SMP-MAX FEMALE - SMA FEMALE 2 HO / Adapter Coaxial Connector SMA Jack, Female Socket To SMP Jack, Female Socket 50Ohm
Datasheet
R191553400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Adapters
Mfr Radiall USA, Inc.
Package Bulk
Adapter Type Jack to Jack
Conversion Type Between Series
Adapter Series SMA to SMP
Center Gender Female to Female
Convert From (Adapter End) SMA Jack, Female Socket
Convert To (Adapter End) SMP Jack, Female Socket
Impedance 50Ohm
Style Straight
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Snap-On, Threaded
Frequency - Max 6 GHz
Center Contact Plating Gold
Body Material Brass
Body Finish Gold
Center Contact Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 100
Temperature Range - Operating -55°C ~ 125°C
Base Product Number R19155
Standard Package 10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1340391-R191553400
Ultra Librarian 3D Model Ultra Librarian R191553400 CAD Model

Description

This is a high-quality coaxial connector adapter that can convert from SMA Jack, Female Socket to SMP Jack, Female Socket.

  • Connector Type: Coaxial Adapter
  • From: SMA Jack, Female Socket
  • To: SMP Jack, Female Socket
  • Fastening Type: Snap-On and Threaded
  • Frequency Range: Up to 6 GHz
  • Impedance: 50Ohm
  • Body Material: Brass
  • Body Finish: Gold
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mating Cycle: 100
  • Mounting Type: Panel Mount
  • Operating Temperature: -55°C to 125°C
