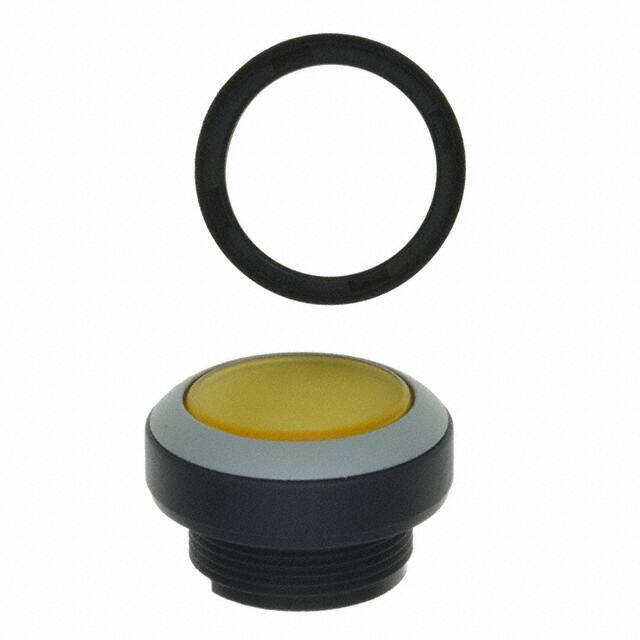

Same model may have multiple batches, images only for reference.
1.30250.2111408
Same model may have multiple batches, images only for reference.

1.30250.2111408

Part No 1.30250.2111408
Manufacturer RAFI USA
Catalog Configurable Switch Components - Body
Description CONFIG SW BODY PUSHBUTTON ILLUM
Datasheet
1.30250.2111408 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Configurable Switch Components - Body
Mfr RAFI USA
Series RAFIX 22 FS
Package Bulk
Product Status Obsolete
Requires Contact Block(s), Illumination Source
Type Maintained
Illumination Illuminated - Yellow
Actuator Type Pushbutton, Round
(Select First, Then Apply Filters) Compatible Series Rafix 22 FS
Panel Cutout Dimensions 22.3mm (Round)
Standard Package 5 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9035
Win Source Part Number 886778-1.30250.2111408
Ultra Librarian 3D Model Ultra Librarian 1.30250.2111408 CAD Model

Description

The 886778-1.30250.2111408 is a configurable switch body from the RAFIX 22 FS series.

  • Series: RAFIX 22 FS
  • Type: Configurable Switch Body
  • Switch Type: Maintained
  • Actuator: Round Pushbutton
  • Illumination: Yellow
  • Requires: Contact Blocks and Illumination Source
  • Panel Cutout: 22.3mm
  • Package: Bulk
  • Quantity per Package: 5 pieces
