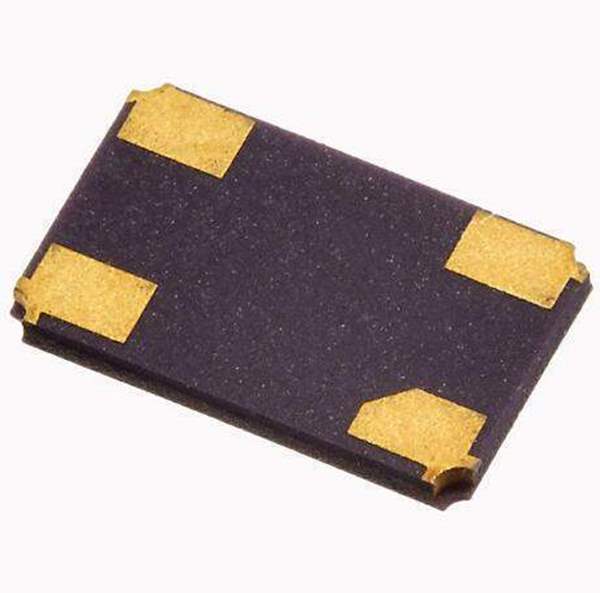

H130B-12.000-16-2525-EXT-TRRaltron Electronics
Same model may have multiple batches, images only for reference.

H130B-12.000-16-2525-EXT-TR

Part No H130B-12.000-16-2525-EXT-TR
Manufacturer Raltron Electronics Corporation
Catalog Crystals
Description CRYSTAL 12.0000MHZ 16PF SMD
Datasheet
H130B-12.000-16-2525-EXT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Raltron Electronics
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±25ppm
Frequency Tolerance ±25ppm
Load Capacitance 16pF
ESR (Equivalent Series Resistance) 35 Ohms
Operating Mode Fundamental
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Win Source Part Number WS1306009-H130B-12.000-16-2525-EXT-TR
Ultra Librarian 3D Model Ultra Librarian H130B-12.000-16-2525-EXT-TR CAD Model

Description

12 MHz ±25ppm Crystal 16pF 35 Ohms 4-SMD, No Lead
