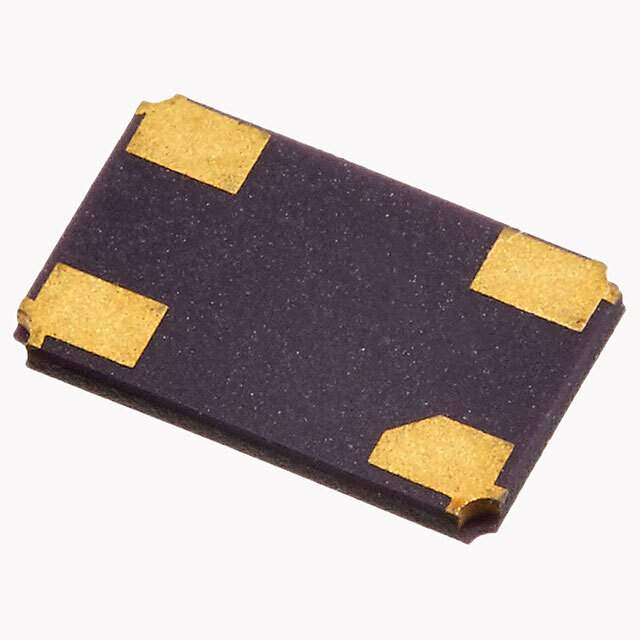

H130B-24.000-18-3030-EXT Real Image
Same model may have multiple batches, images only for reference.

H130B-24.000-18-3030-EXT

Part No H130B-24.000-18-3030-EXT
Manufacturer Raltron Electronics Corporation
Catalog Custom Parts (E - I)
Description Crystal, 24MHZ, 18PF, 5MM X 3.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package SMD/SMT
Frequency 24 MHz
Frequency Stability 30 ppm
Frequency Tolerance 0.003 %
Height 650 µm
Length 5 mm
Load Capacitance 18 pF
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Pins 4
REACH SVHC No SVHC
RoHS Compliant
Series Resistance 70 Ω
Width 3.2 mm
Win Source Part Number 1209124-H130B-24.000-18-3030-EXT
Categories Custom Parts
Manufacturer Raltron Electronics Corporation
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H130B-24.000-18-3030-EXT CAD Model

Description

The H130B-24.000-18-3030-EXT is a limited supply custom electronic component manufactured by Raltron Electronics Corporation.

  • Supply and Demand: Limited
  • Frequency: 24 MHz
  • Frequency Stability: 30 ppm
  • Frequency Tolerance: 0.003%
  • Load Capacitance: 18 pF
  • Series Resistance: 70 Ω
  • RoHS Compliance: Compliant
