Same model may have multiple batches, images only for reference.

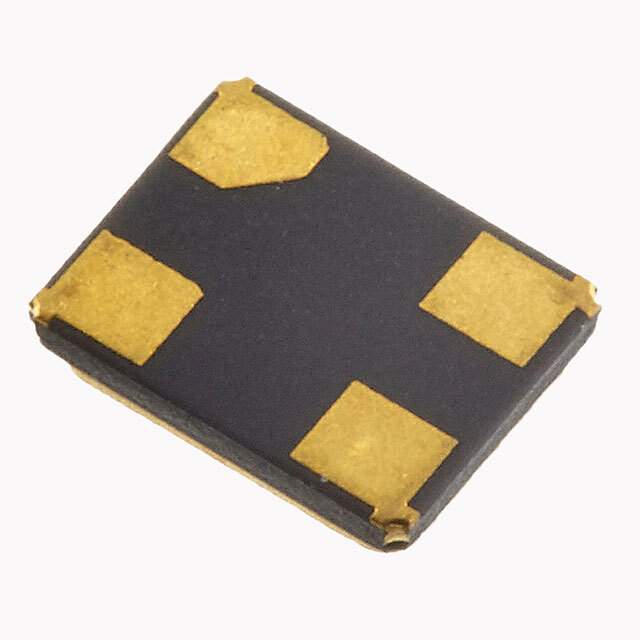

RH100-24.000-10-1010-TR Real Image
Same model may have multiple batches, images only for reference.

RH100-24.000-10-1010-TR

Part No RH100-24.000-10-1010-TR
Manufacturer Raltron Electronics Corporation
Catalog Oscillators
Description CRYSTAL 24.0000MHZ 10PF SMD / 24 MHz ±10ppm Crystal 10pF 60 Ohms 4-SMD, No Lead
Datasheet
RH100-24.000-10-1010-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Raltron Electronics
Series RH100
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names -2344-RH100-24.000-10-1010-CT-ND,-2344-RH100-24.000-10-1010-TR,2151-RH100-24.000-10-1010-TR,2151-RH100-24.000-10-1010-TRDKR,2151-RH100-24.000-10-1010-TRCT
Standard Package 3,000
Win Source Part Number 1158219-RH100-24.000-10-1010-TR
Ultra Librarian 3D Model Ultra Librarian RH100-24.000-10-1010-TR CAD Model

Description

The RH100-24.000-10-1010-TR is a MHz crystal designed by Raltron Electronics manufactured by Raltron Electronics.

  • Series: RH100
  • Frequency: 24 MHz
  • Frequency Tolerance: ±10ppm
  • Frequency Stability: ±10ppm
  • Temperature Range: -20°C to 70°C
  • Packaging: Tape and reel
  • Standard Package: 3,000
  • Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Suitable for: Electronic components that require MHz crystals
