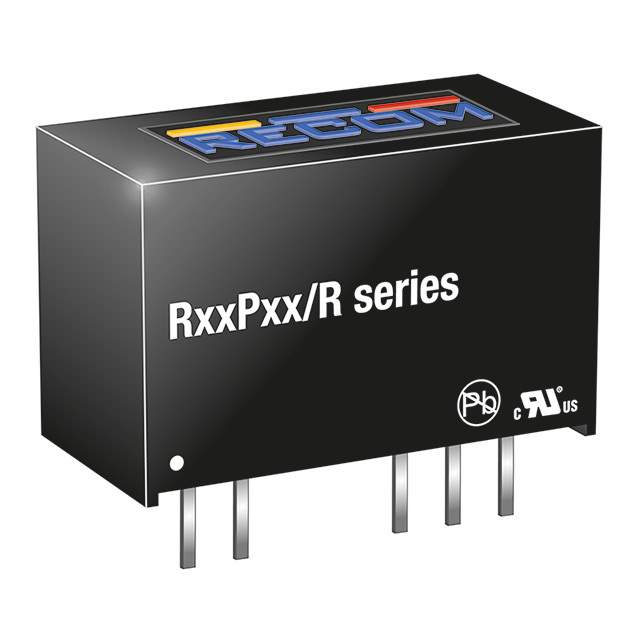

R05P05S/X2/R8 Real Image
Same model may have multiple batches, images only for reference.

R05P05S/X2/R8

Part No R05P05S/X2/R8
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
R05P05S/X2/R8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Recom Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 8 kV
Applications ITE (Commercial), Medical
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Through Hole
Case / Package 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm)
Base Product Number R05P05
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number R05P05S/X2/R8-ND,19900447,945-2793
Standard Package 25
Win Source Part Number 1335289-R05P05S/X2/R8
Ultra Librarian 3D Model Ultra Librarian R05P05S/X2/R8 CAD Model

Description

The Recom Power R05P05S/X2/R8 is an isolated module DC-DC converter with a power rating of 1W.

  • Power Rating: 1W
  • Application: ITE (Commercial) and Medical
  • Voltage Isolation: 8 kV
  • Single Output: 5V
  • Maximum Output Current: 200mA
  • Input Voltage Range: 4.5V to 5.5V
  • Package: 7-SIP module
  • Mounting: through hole
  • Operating Temperature Range: -40°C to 85°C
  • ROHS3 Compliance: ROHS3 compliant
  • REACH Unaffected: REACH unaffected
