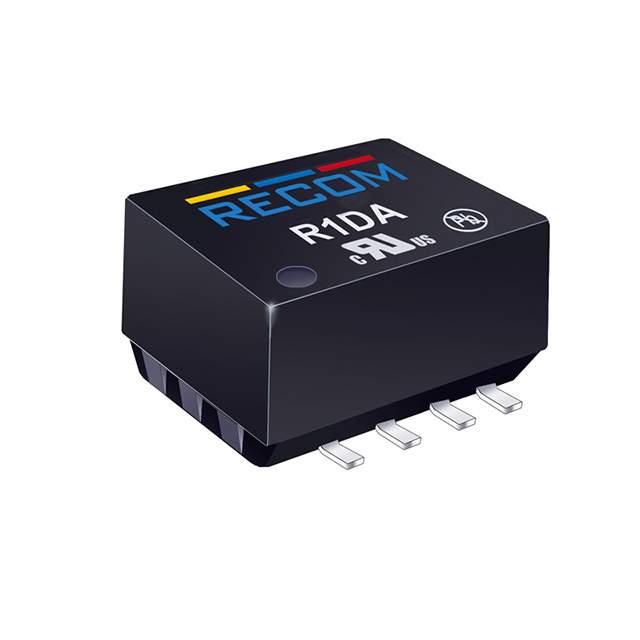

The R1DA (1W) series is an isolated module type DC-DC converter that comes with SCP features.

• Package: It is packaged in a Tape & Reel (TR) and is commonly used in ITE (Commercial) applications.
• Model: The R1DA-3.31212/P-R model has a power rating of 1 W and a voltage-isolation of 1 kV.
• Output: It has two outputs with a maximum output current of 42mA and 42mA, respectively.
• Input Voltage: The input voltage range is from 3V to 3.6V.
• Output Voltage: The output voltage is 12V, and the efficiency is 80%.
• Mounting Type: The module has a surface-mount mounting type and a 10-SMD Module, 7 Leads package/case.
• Operating Temperature: The operating temperature range is from -40°C to 100°C.
