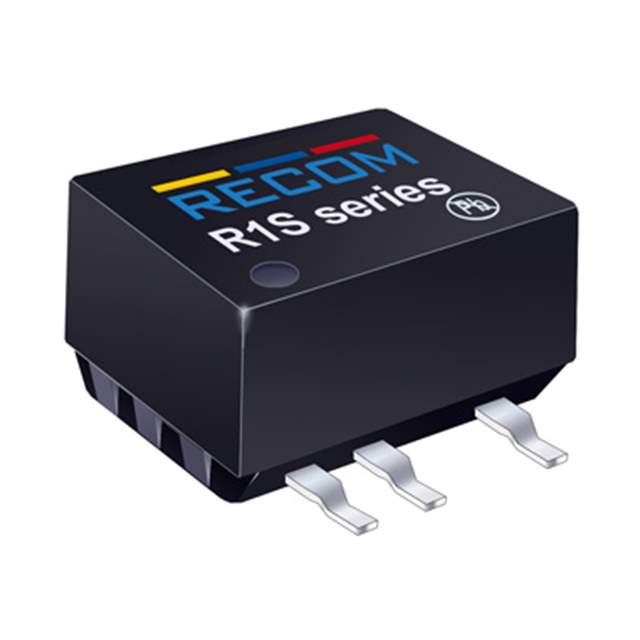

Same model may have multiple batches, images only for reference.

R1S-0505/HP-R

Name: R1S-0505/HP-R
Brand: Recom Power
SKU: 1336805
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	R1S-0505/HP-R
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet	R1S-0505/HP-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE R1S (1W)
Package	Tape & Reel
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial) , Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	78%
Mounting Type	Surface Mount
Package / Case	8-SMD Module, 5 Leads
Size / Dimension	0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Base Product Number	R1S-0505
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1336805-R1S-0505/HP-R
Ultra Librarian 3D Model	Ultra Librarian R1S-0505/HP-R CAD Model

Alternative Products

Description

The ECONOLINE R1S (1W) isolated module is a DC-DC converter with a voltage input range of 4.5V to 5.5V and a voltage output of 5V. It features short circuit protection and has a power rating of 1W with an efficiency of 78%. The package is an 8-SMD module with 5 leads and is suitable for surface mount mounting. The module is ideal for commercial and medical ITE applications.
