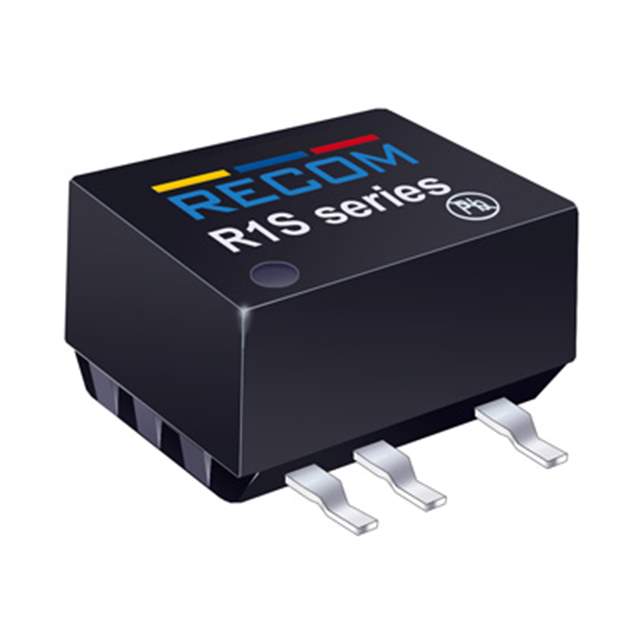

Same model may have multiple batches, images only for reference.

R1S-3.305

Name: R1S-3.305
Brand: Recom Power
SKU: 1335305
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	R1S-3.305
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 3V - 3.6V Input
Datasheet	R1S-3.305 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Recom Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	3.6V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	78%
Mounting	Surface Mount
Case / Package	8-SMD Module, 5 Leads
Size / Dimension	0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	10014271,R1S3.305,R1S-3.305-ND,945-3301
Standard Package	40
Win Source Part Number	1335305-R1S-3.305
Ultra Librarian 3D Model	Ultra Librarian R1S-3.305 CAD Model

Alternative Products

Description

The R1S (1W) series is an isolated module type DC-DC converter that comes with SCP features.

Features: SCP
Application: ITE (Commercial)
Power Rating: 1 W
Voltage-Isolation: 1 kV
Number of Outputs: 1
Maximum Output Current: 200mA
Input Voltage Range: 3V to 3.6V
Output Voltage: 5V
Efficiency: 78%
Mounting Type: Surface-mount
Package/Case: 8-SMD Module, 5 Leads
Operating Temperature Range: -40°C to 100°C
