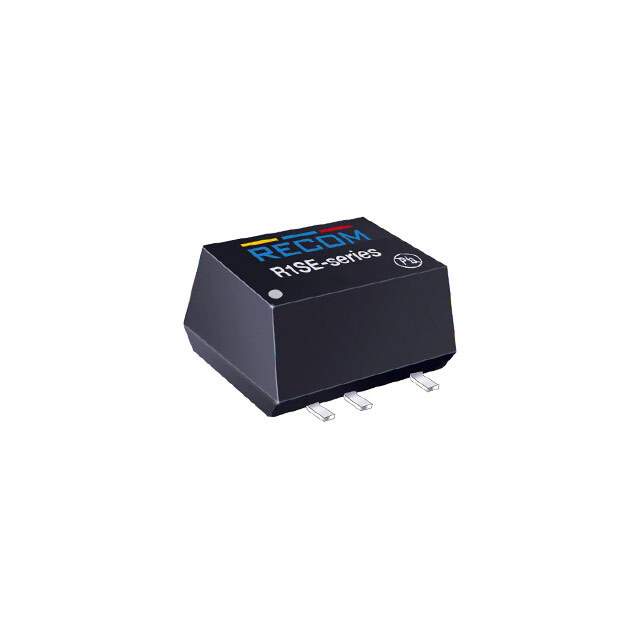

Same model may have multiple batches, images only for reference.

R1SE-0505

Name: R1SE-0505
Brand: Recom Power
SKU: 1335325
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	R1SE-0505
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet	R1SE-0505 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Recom Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	75%
Mounting	Surface Mount
Case / Package	8-SMD Module, 5 Leads
Size / Dimension	0.50" L x 0.42" W x 0.26" H (12.8mm x 10.7mm x 6.7mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	945-3306,R1SE-0505-ND,10016298
Standard Package	40
Win Source Part Number	1335325-R1SE-0505
Ultra Librarian 3D Model	Ultra Librarian R1SE-0505 CAD Model

Alternative Products

Description

The R1SE-0505 isolated module is a DC-DC converter.

Voltage Input Range: 4.5V to 5.5V
Voltage Output: 5V
Protection: Short circuit protection
Power Rating: 1W
Efficiency: 75%
Package: 8-SMD module with 5 leads
Mounting: Surface mount
Applications: Commercial ITE applications
