Same model may have multiple batches, images only for reference.

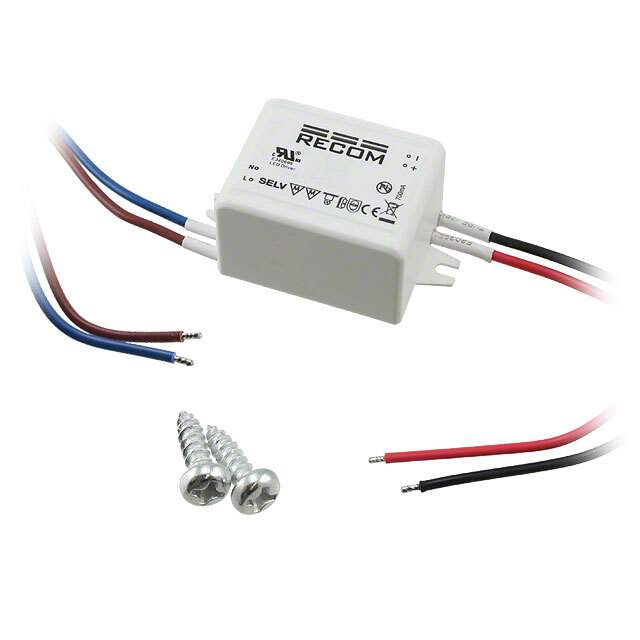

RACD03-700 Real Image
Same model may have multiple batches, images only for reference.

RACD03-700

Part No RACD03-700
Manufacturer Recom Power
Catalog PMIC - LED Drivers
Description LED DRVR CC/CV AC/DC 3-4.5V  /  700mA 3 ~ 4.5V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
RACD03-700 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr Recom Power
Series LIGHTLINE RACD03 (3W)
Package Box
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 264VAC
Voltage - Output 3 ~ 4.5V
Current - Output (Max) 700mA
Power (Watts) 3 W
Voltage - Isolation 3 kV
Features OCP, OTP, OVP, SCP
Ratings IP66
Temperature Range - Operating -20°C ~ 50°C
Efficiency 62%
Termination Style Wire Leads
Dimension 1.81" L x 1.18" W x 0.91" H (46.0mm x 30.0mm x 23.0mm)
Approval Agency CE, cURus, EAC, ENEC
Mounting Type Chassis Mount
Weight 0.1 lb (45.36 g)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 945-1414,21000129,RACD03700
Standard Package 10
Win Source Part Number 1157452-RACD03-700
Ultra Librarian 3D Model Ultra Librarian RACD03-700 CAD Model

Description

The LIGHTLINE RACD03 (3W) is a constant current, voltage type AC DC converter with OCP, OTP, OVP, and SCP features.

  • Application: LED Driver
  • Power: 3 W
  • Voltage Input: 90VAC to 264VAC
  • Voltage Output: 3 ~ 4.5V
  • Number of Outputs: 1
  • Current Output Max: 700mA
  • Efficiency: 62%
  • Operating Temperature: -20°C ~ 50°C
  • Dimension: 1.81" L x 1.18" W x 0.91" H (46.0mm x 30.0mm x 23.0mm)
  • Approvals: CE, cURus, EAC, and ENEC
