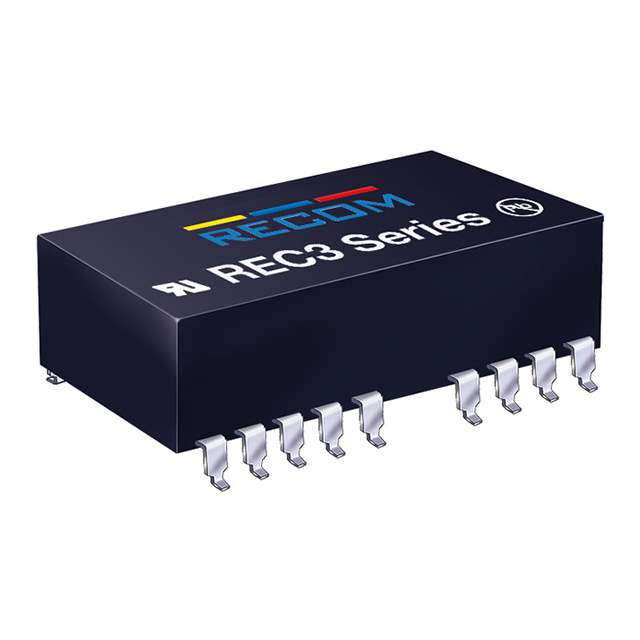

Same model may have multiple batches, images only for reference.

REC3-1205DRW/H6/A/SMD

Get a Quote

Part No	REC3-1205DRW/H6/A/SMD
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 3W / Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 9V - 18V Input
Datasheet	REC3-1205DRW/H6/A/SMD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	ECONOLINE REC3-DRW (3W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	300mA, 300mA
Power (Watts)	3 W
Voltage - Isolation	6 kV
Applications	ITE (Commercial), Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	83%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 18 Leads
Dimension	1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm)
Base Product Number	REC3-1205
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	10005816,REC31205DRW/H6/A/SMD
Standard Package	15
Win Source Part Number	1017226-REC3-1205DRW/H6/A/SMD
Ultra Librarian 3D Model	Ultra Librarian REC3-1205DRW/H6/A/SMD CAD Model

Alternative Products

Description

The Recom Power ECONOLINE REC3-DRW (3W) series DC-DC converter is an isolated module with 2 outputs of 5V and -5V, each with a current rating of 300mA.

Features: SCP
Voltage Isolation: 6kV
Package: 24-SMD Module with 18 Leads
Applications: ITE (Commercial) and Medical
Efficiency: 83%
Temperature Range: -40°C to 85°C
Dimension: 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm)
ECCN: EAR99
REACH: Unaffected
