Same model may have multiple batches, images only for reference.

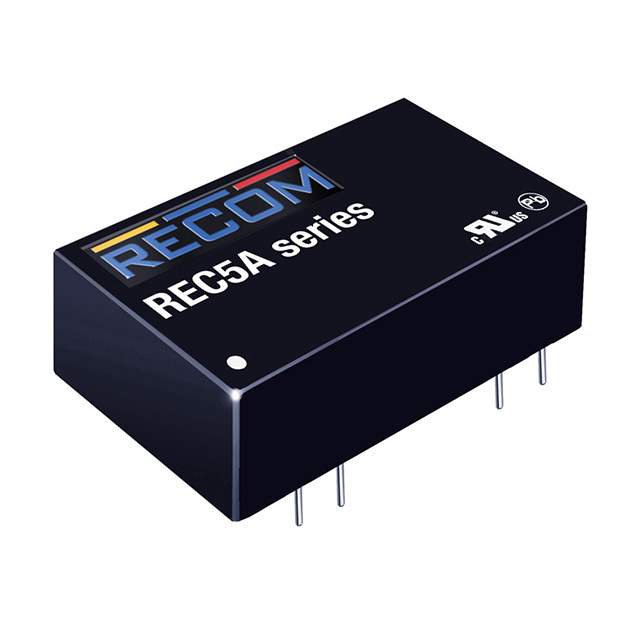

REC5A-2405SW/H2 Real Image
Same model may have multiple batches, images only for reference.

REC5A-2405SW/H2

Part No REC5A-2405SW/H2
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 5W / Isolated Module DC DC Converter 1 Output 5V 1A 18V - 36V Input
Datasheet
REC5A-2405SW/H2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Recom Power
Series REC5A (5W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 1A
Power (Watts) 5 W
Voltage - Isolation 2 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 81%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number REC5A-2405
Standard Package 15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1351363-REC5A-2405SW/H2
Ultra Librarian 3D Model Ultra Librarian REC5A-2405SW/H2 CAD Model

Description

The REC5A-2405SW/H2 is a DC DC converter from Recom Power's REC5A (5W) series.

  • Series: REC5A (5W)
  • Type: Isolated Module
  • Power: 5W
  • Voltage Isolation: 2kV
  • Output: Single
  • Maximum Output Current: 1A
  • Efficiency: 81%
  • Voltage Input Range: 18V to 36V
  • Package: Through-Hole 24-DIP Module, 8 Leads
  • Temperature Range: -40°C to 100°C (with derating)
