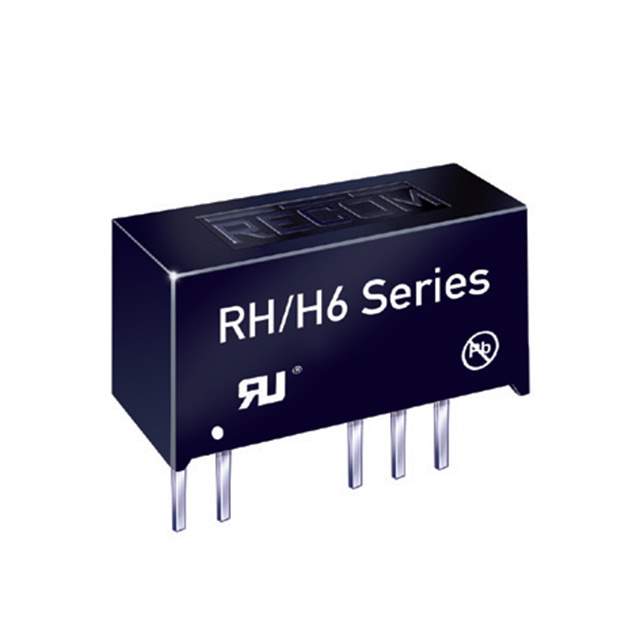

Same model may have multiple batches, images only for reference.

RH-053.3D/H6

Get a Quote

Part No	RH-053.3D/H6
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-3.3V 1W / Isolated Module DC DC Converter 2 Output 3.3V -3.3V 152mA, 152mA 4.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RH/H6 (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	3.3V
Voltage - Output 2	-3.3V
Current - Output (Max)	152mA, 152mA
Power (Watts)	1 W
Voltage - Isolation	6.4 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 90°C
Efficiency	74%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Dimension	0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm)
Base Product Number	RH-053.3
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	945-2428-5,10017927
Standard Package	25
Win Source Part Number	1061466-RH-053.3D/H6
Ultra Librarian 3D Model	Ultra Librarian RH-053.3D/H6 CAD Model

Alternative Products

Description

The Recom Power ECONOLINE RH/H6 (1W) RH-053.3D/H6 is a 7-SIP module isolated DC-DC converter with a power rating of 1W.

Outputs: two outputs with a voltage output of 3.3V and -3.3V respectively
Mounting: designed for through-hole mounting
Input Voltage Range: 4.5V to 5.5V
Voltage Isolation: 6.4kV
Protection: SCP protection
Efficiency: 74%
Ideal for: ITE (Commercial) applications
Size: 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm)
