Same model may have multiple batches, images only for reference.

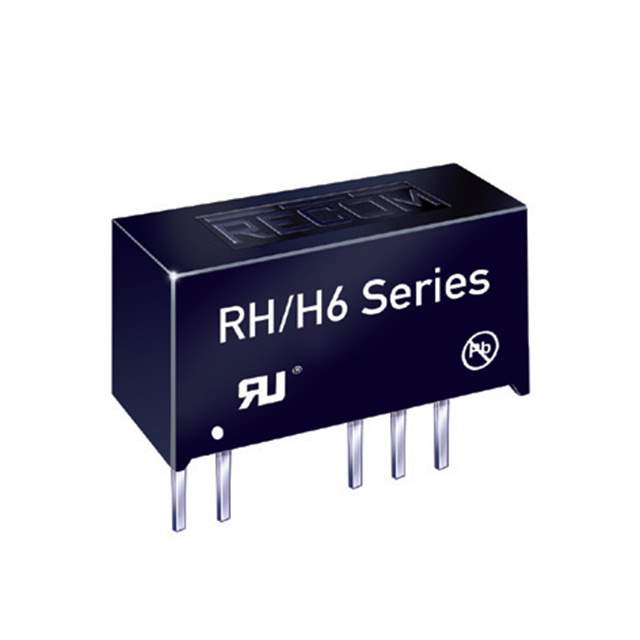

RH-1515D/H6 Real Image
Same model may have multiple batches, images only for reference.

RH-1515D/H6

Part No RH-1515D/H6
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 13.5V - 16.5V Input
Datasheet
RH-1515D/H6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Recom Power
Series ECONOLINE RH/H6 (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 13.5V
Voltage - Input (Max) 16.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA, 33mA
Power (Watts) 1 W
Voltage - Isolation 6.4 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm)
Base Product Number RH-1515
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1341252-RH-1515D/H6
Ultra Librarian 3D Model Ultra Librarian RH-1515D/H6 CAD Model

Description

The ECONOLINE RH/H6 (1W) is a compact isolated module power supply designed for use in a variety of applications, including ITE (Commercial) equipment.

  • Voltage Isolation: 6.4 kV
  • Output Voltages: 15V, -15V
  • Power: 1 W
  • Protection: SCP
  • Size: 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.0mm x 10.2mm)
  • Efficiency: 80%
