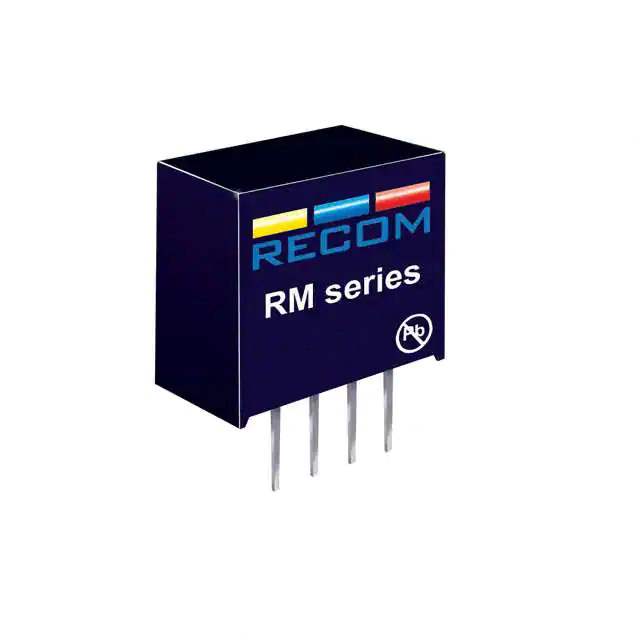

Same model may have multiple batches, images only for reference.

RM-0505S

Name: RM-0505S
Brand: Recom Power
SKU: 660536
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RM-0505S
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 250MW
Datasheet	RM-0505S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RM (0.25W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	50mA
Power (Watts)	250 mW
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	72%
Mounting Type	Through Hole
Package / Case	4-SIP Module
Size / Dimension	0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm)
Base Product Number	RM-0505
Standard Package	42 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	660536-RM-0505S
Ultra Librarian 3D Model	Ultra Librarian RM-0505S CAD Model

Alternative Products

Description

The RM-0505S is a top-notch product in the ECONOLINE RM (0.25W) series by Recom Power which offers reliable and efficient board mount DC DC converters.

Converter Type: DC DC
Application: ITE (Commercial)
Power Rating: 250 mW
Output Voltage: 5V
Voltage Isolation: 1 kV
Protection: Short Circuit Protection (SCP)
Size: 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm)
Efficiency: 72%
Mounting Type: Through-Hole
Package: 4-SIP Module
