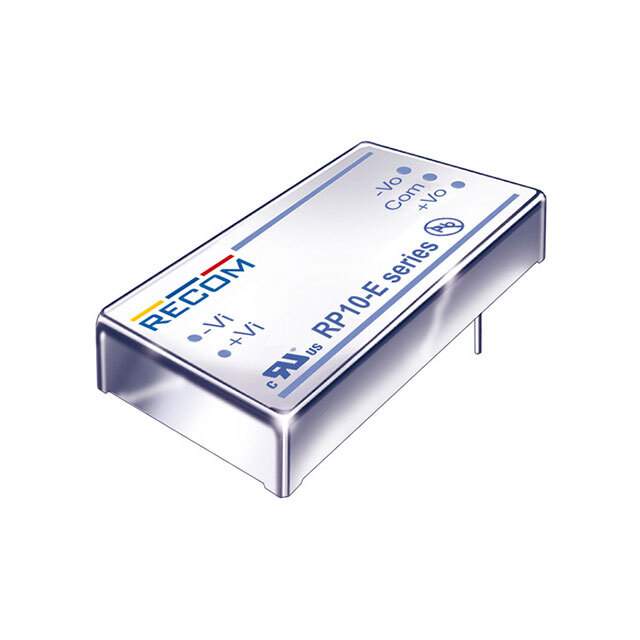

Same model may have multiple batches, images only for reference.

RP10-1205SE/N

Get a Quote

Part No	RP10-1205SE/N
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 10W / Isolated Module DC DC Converter 1 Output 5V 2A 9V - 18V Input
Datasheet	RP10-1205SE/N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	POWERLINE RP10-E (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts)	10 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-25°C ~ 85°C
Efficiency	81%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Control Features	Enable, Active Low
Base Product Number	RP10-1205
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	31001156,RP101205SE/N
Standard Package	9
Win Source Part Number	1189822-RP10-1205SE/N
Ultra Librarian 3D Model	Ultra Librarian RP10-1205SE/N CAD Model

Alternative Products

Description

The POWERLINE RP10-E (10W) is an isolated module type DC-DC converter designed for use in power supplies on board mount DC-DC converters from Recom Power.

Type: Isolated Module DC-DC Converter
Power: 10W
Features: Remote On/Off, OCP, OVP, SCP
Mounting Type: Through-Hole
Application: ITE (Commercial)
Voltage Isolation: 1.6 kV
Output: Single
Output Current: 2A (Max)
Output Voltage: 5V
Package: 6-DIP Module
Dimensions: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Efficiency: 81%
Standard Package: 9
Alternative Parts: 31001156, RP10-1205SEN
ECCN: EAR99
REACH: Unaffected
HTSUS: 8504.40.9580
Manufacturer: Recom Power
