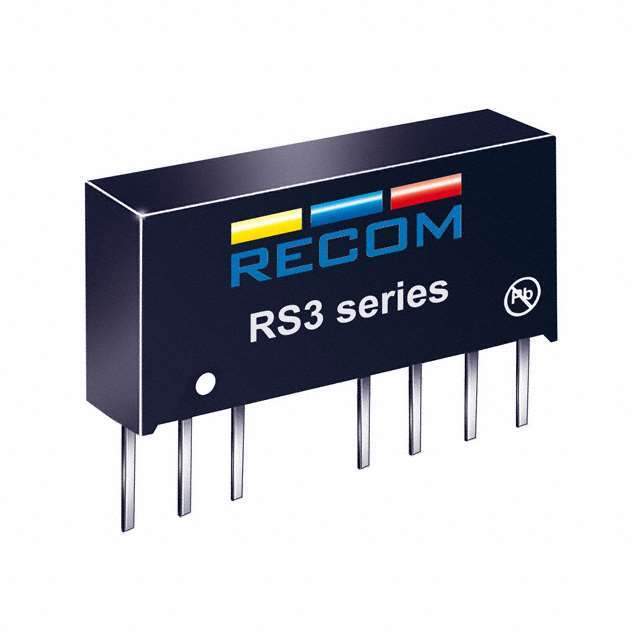

Same model may have multiple batches, images only for reference.

RS3-2415DZ

Name: RS3-2415DZ
Brand: Recom Power
SKU: 1351413
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	RS3-2415DZ
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 9V - 27V Input
Datasheet	RS3-2415DZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RS3 (3W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	27V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	100mA, 100mA
Power (Watts)	3 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	80%
Mounting Type	Through Hole
Package / Case	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features	Enable, Active Low
Base Product Number	RS3-2415
Standard Package	22
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1351413-RS3-2415DZ
Ultra Librarian 3D Model	Ultra Librarian RS3-2415DZ CAD Model

Alternative Products

Description

The ECONOLINE RS3 (3W) isolated module is a power supply component designed for use in commercial applications.

Voltage Isolation: 1 kV
Outputs: Two
Maximum Output Current: 100mA each
Input Voltage: 9V and 27V
Output Voltage (Output 1): 15V
Output Voltage (Output 2): -15V
Mounting Type: Through-hole
Package: 8-SIP module
Leads: 7
Features: SCP and remote on/off
Efficiency: 80%
Operating Temperature: -40°C and 71°C
ECCN: EAR99
Manufacturer: Recom Power
Standard Package: 22
