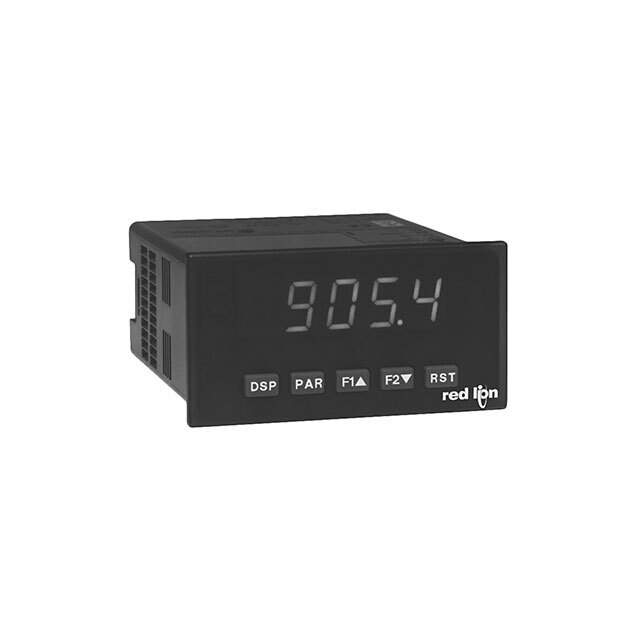

PAXH0100 Real Image
Same model may have multiple batches, images only for reference.

PAXH0100

Part No PAXH0100
Manufacturer Red Lion Controls
Catalog Panel Meters
Description AMMETER/VOLTMETER 0-5A/0-300VDC / Digital Input Panel Meters 1/8 Din
Datasheet
PAXH0100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Industrial Controls
Manufacturer Red Lion Controls
Series PAX
Type Current (Ammeter), Voltage (Voltmeter)
Measuring Range 0 ~ 5A, 0 ~ 300VDC
Display Type LED - Green Characters
Number Of Characters Per Row 5
Display Characters - Height 0.560" (14.20mm)
Output Type Option Cards Available
Operating Supply Voltage 85 ~ 250VAC
Panel Cutout Dimensions Rectangular - 92.00mm x 45.00mm
Mounting Panel Mount
Termination Style Screw Terminal
Ingress Protection IP65 - Dust Tight, Water Resistant
Features Excitation Supply, Option Cards Available
Operating Temperature Range 0°C ~ 50°C
Weight 0.65 lb (294.84g)
Win Source Part Number 769380-PAXH0100
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name PAXH0100
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PAXH0100 CAD Model

Description

The PAXH0100 is a high performance meter designed for use in industrial control applications.

  • Display: green LED with 5 characters per row
  • Character height: 0.560 inches
  • Current measurement: up to 5A
  • Voltage measurement: up to 300VDC
  • Features: excitation supply and option cards
  • Package: panel mount
  • Ingress protection: IP65
  • Operating temperature range: 0°C to 50°C
