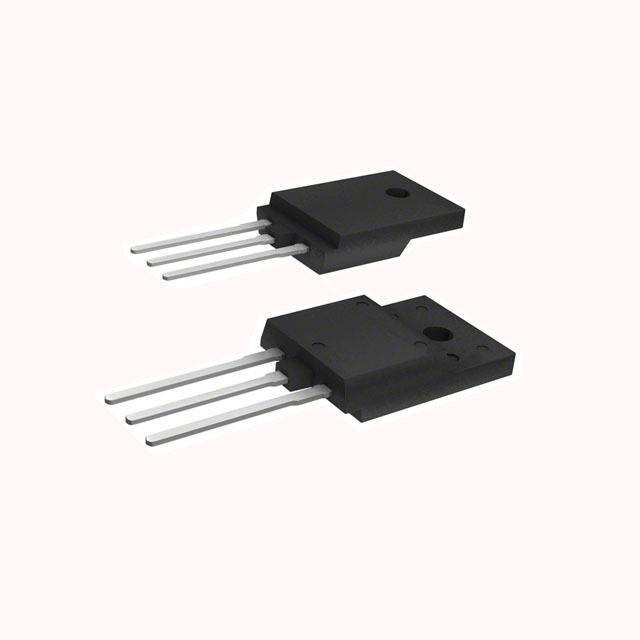

Same model may have multiple batches, images only for reference.
BCR16PM-12LG#B00 Renesas Electronics America
Same model may have multiple batches, images only for reference.

BCR16PM-12LG#B00

Part No BCR16PM-12LG#B00
Manufacturer Renesas Electronics America
Catalog Triacs
Description TRIAC 600V 16A / TRIAC 600V 160A 3-Pin(3+Tab) TO-220F Bag
Datasheet
BCR16PM-12LG#B00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Tube
Triac Type Standard
Voltage - Off State 600V
Current - On State (It (RMS)) (Maximum) 16A
Voltage - Gate Trigger (Vgt) (Maximum) 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) 160A @ 60Hz
Current - Gate Trigger (Igt) (Maximum) 30mA
Configuration Single
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Style Through Hole
Package TO-220-3 Full Pack
Manufacturer Package TO-220F
Win Source Part Number 769798-BCR16PM-12LG#B00
Popularity Medium
Supply and Demand Status Limited
Family Name BCR16PM-12LG
Introduction Date February 13, 2007
ECCN EAR99
Estimated EOL Date 2020
Ultra Librarian 3D Model Ultra Librarian BCR16PM-12LG#B00 CAD Model

Description

The Renesas Electronics America BCR16PM-12LG#B00, manufactured by Renesas Electronics America, is a single configuration triac.

  • Voltage Off State: 600V
  • Non-Repetitive Surge Current: 160A @ 60Hz
  • Package: TO-220-3 Full Pack
  • Mounting: Through Hole
  • Maximum Current On State: 16A
  • Maximum Voltage Gate Trigger: 1.5V
  • Current Gate Trigger: 30mA
  • Family: BCR16PM-12LG
  • Category: Discrete Semiconductor Products
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • ECCN: EAR99
  • Estimated EOL Date: 2020
  • Supply and Demand Status: Limited
  • Alternative Parts: SM12JZ47(LB182), SM12JZ47(LB186LG), SM12JZ47(ELMATUD,F), SM12JZ47(HITT-2,F)
