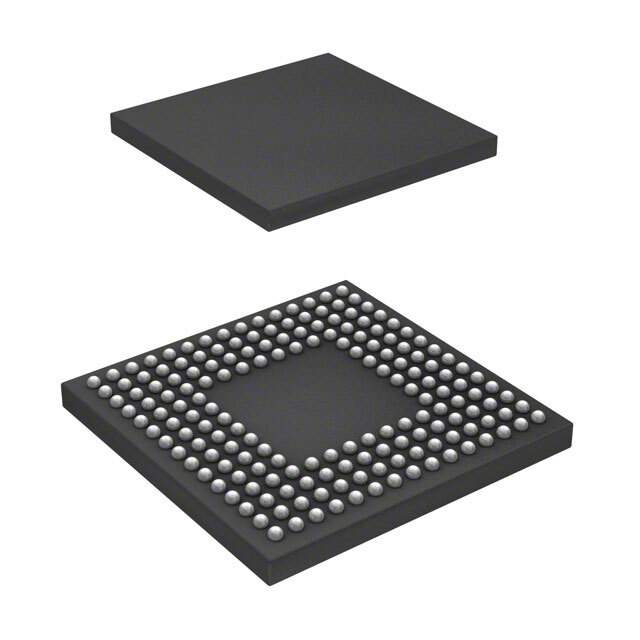

DF2117VBG20IHV Real Image
Same model may have multiple batches, images only for reference.

DF2117VBG20IHV

Part No DF2117VBG20IHV
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 160KB FLSH 176LFBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 11 Weeks
Features H8S/2600 series Microcontroller IC 16-Bit 20MHz 160KB (160K x 8) FLASH 176-LFBGA (13x13)
Manufacturer Renesas Electronics America
Series H8® H8S/2100
Package Tray
Core Processor H8S/2600
Core Size 16-Bit
Speed 20MHz
Connectivity FIFO, I2C, LPC, SCI, SmartCard
Peripherals POR, PWM, WDT
Number of I/O 128
Program Memory Size 160KB (160K x 8)
Program Memory Type FLASH
Supply Voltage 3V ~ 3.6V
Data Converters A/D 16x10b
Oscillator Type External
Operating Temperature Range -20°C ~ 75°C (TA)
Mounting Surface Mount
Package 176-LFBGA
Case / Package 176-LFBGA (13x13)
Family Name DF2117
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Quantity per package 152
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 868452-DF2117VBG20IHV
Ultra Librarian 3D Model Ultra Librarian DF2117VBG20IHV CAD Model

Description

The Renesas Electronics America H8S/2100 series microcontroller IC is a high-performance component that boasts a 16-bit core processor with a speed of 20MHz.

  • Program Memory Size: 160KB (160K x 8) FLASH
  • Connectivity Options: FIFO, I2C, LPC, SCI, and SmartCard
  • Peripherals: POR, PWM, WDT
  • Data Converter: A/D 16x10b
  • Mounting: surface mount
  • Operating Temperature Range: -20°C to 75°C (TA)
  • Supply Voltage: 3V to 3.6V
  • Package: 176-LFBGA (13x13) tray
